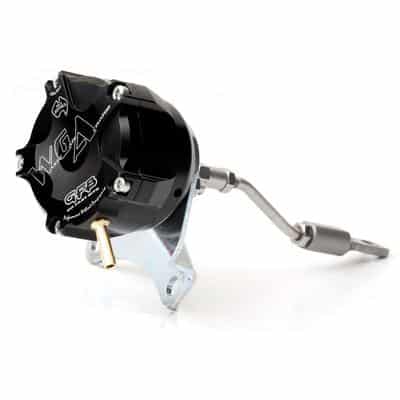

GFB – 7304 Wastegate Actuator for all Subaru WRX TD04

GFB – 7304 Wastegate Actuator for all Subaru WRX TD04

/n designed to improve boost control
The WGA is a high performance internal wastegate actuator designed to improve boost control on internally wastegated turbos. By using a significantly larger diaphragm area than the OEM actuator, the WGA has more control authority over the wastegate flap, meaning exhaust backpressure cannot override the flap position as easily, resulting in more stable and reliable boost control.

Supplied with 3 springs and a unique turnbuckle pre-load adjustment, the base boost pressure can be configured and adjusted from 5psi to 24psi for the best possible boost control.

The WGA features a longer stroke, shorter height, and more adjustment than its rivals.

WGA part # 7304 is designed to bolt on to Subaru WRX models from MY97-07 with the factory TD04 turbo. The 5psi and 7psi springs are installed for a base pressure of 12psi, and the 10psi spring is included in the packaging for further tuning options.

Please note that whilst this is a physical ?bolt-on? product, it should be considered a tuning tool as it WILL increase boost pressure and therefore TUNING IS REQUIRED. /n
