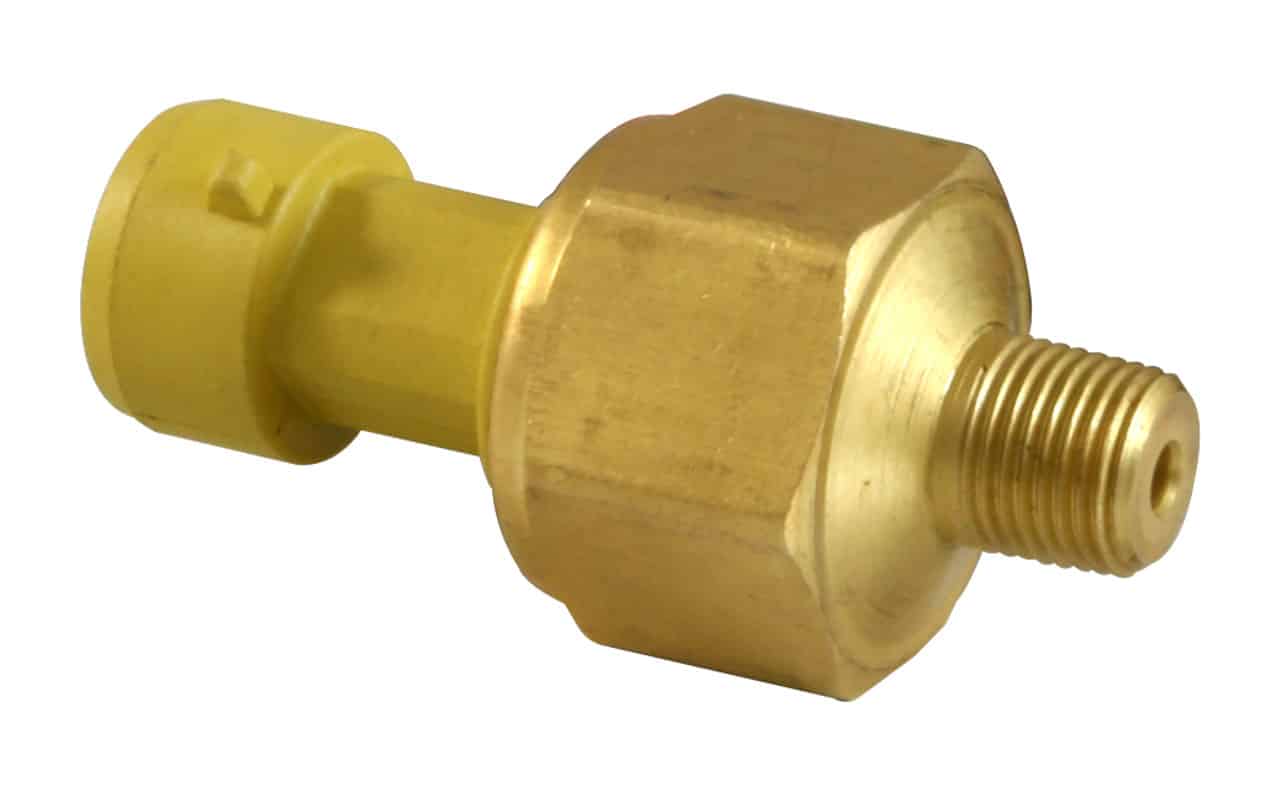

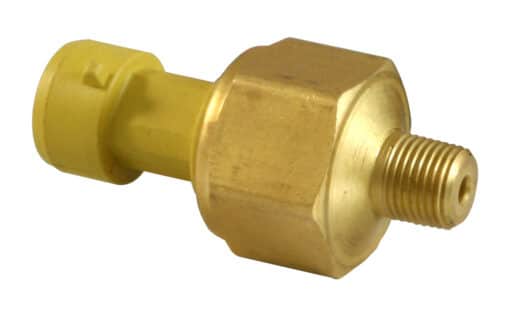

AEM – 5 BAR Brass MAP Sensor Kit 30-2131-75

AEM – 5 BAR Brass MAP Sensor Kit 30-2131-75

AEM – 5 BAR Brass MAP Sensor Kit 30-2131-75

Features:

• Brass sensor body with 1/8″ NPT male thread

• Measures absolute pressure (PSIa) — ideal for vacuum and manifold pressure readings

• Includes sensor, connector, pins, and pin lock

• Output: 0.5 to 4.5 Vdc linear signal

• Accuracy: ±3% full scale (includes repeatability, hysteresis, linearity)

• Operating temperature: -40°C to 105°C (-40°F to 221°F)

• Burst pressure: 150 PSI

• Fast response time: < 1 ms

• Vibration resistance: 100-2000 Hz, 20g sinusoidal, 3 axes

• Wetted materials: 304L & 316L stainless steel

• Weight: < 85 grams

• Integral weatherproof connector included

Usage Notes:

• Brass sensor = general reference accuracy (~3%)

• Suitable for boost gauges or manifold pressure reference, not for precise ECU calibration

• Stainless steel sensors recommended for exact ECU calibration needs

• Sensor reads atmospheric pressure (~14.7 PSI) at sea level and can measure vacuum
