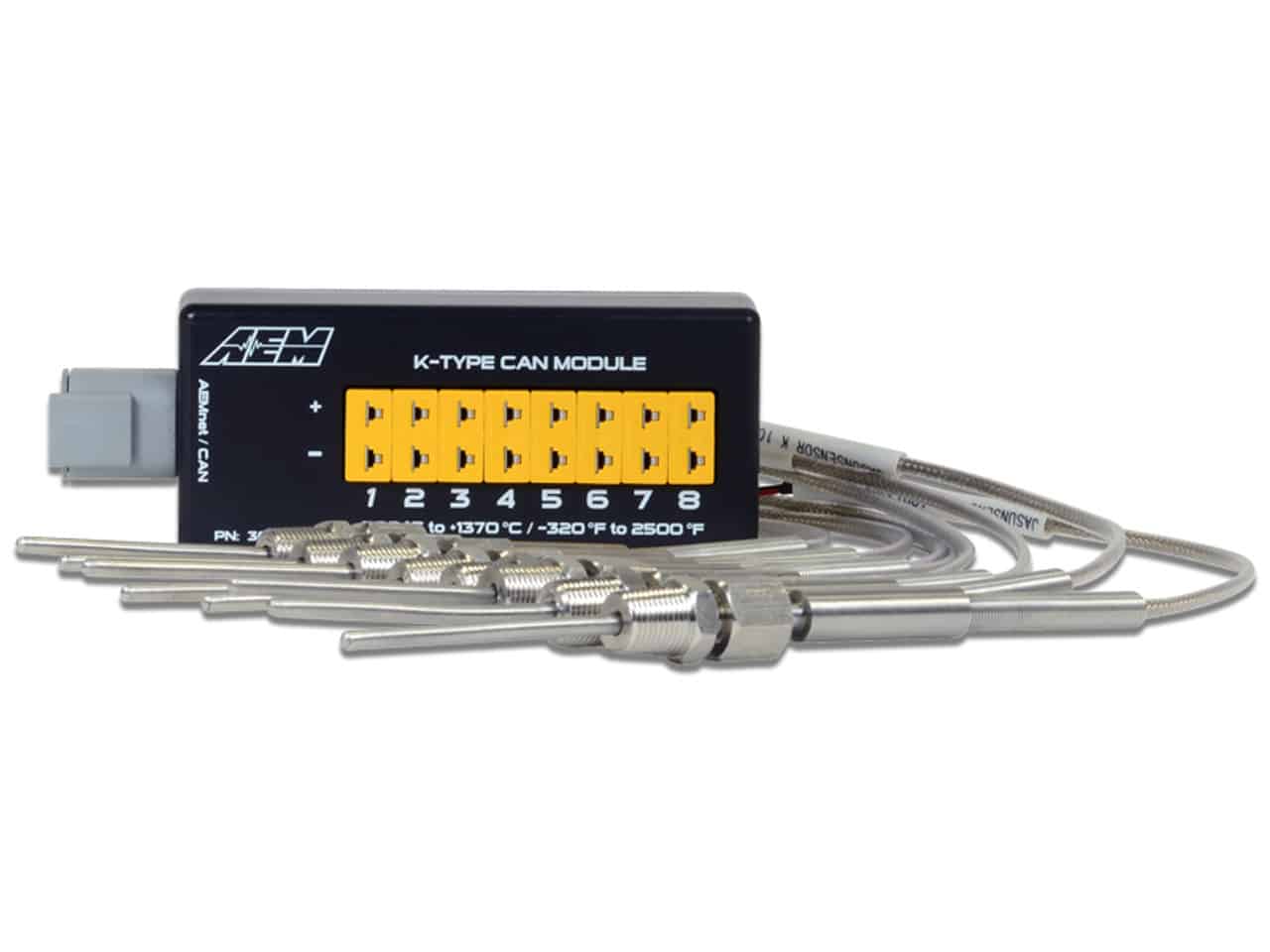

AEM – 8 Channel CAN EGT Module 30-2224

AEM – 8 Channel CAN EGT Module 30-2224

AEM – 8 Channel CAN EGT Module 30-2224

• Included Items:

  • CAN Module

  • 4-Pin DTM-style Connector Plug

  • Velcro tab for in-vehicle mounting

  • Instructions

Key Features:

• Allows installation of up to 8 K-type thermocouple sensors

• Transmits all 8 temperature channels to:

  • AEM CD Carbon Digital Dash

  • 3rd party programmable CAN devices

• One-plug CAN bus connection for easy integration

• Out-of-the-box compatibility with AEM CD Digital Dashes

• Configurable for use with virtually any programmable CAN-based receiving device

• Uses miniature K-type connectors for thermocouples

• Accepts AEM K-type thermocouple sensors (PN 30-2068, sold separately in 1-, 2-, and 4-packs)

• Supports various temperature measurements including:

  • Exhaust Gas Temps (EGTs)

  • Cylinder Head Temps

  • Pre/Post Intercooler Temps

  • Air Temps

  • Water Temps

  • Fluid Temps

  • Disc Brake Temps

Expandability & Connectivity:

• Daisy-chain capability: Connect two modules for up to 16 temp inputs through a single CAN bus plug

• Configurable CAN output using a DTM-style one-plug connection (cables sold separately)

• Pre-configured AEMnet CAN bus for plug & play with:

  • CD Digital Dashes

  • Infinity ECUs

  • AQ-1 (Note: not compatible with Series 2 ECU)

Technical Specs:

• Cold junction compensated for lab-grade accuracy (±0.15% full scale)

• Temperature range: -200 to 1372°C (-328 to 2501°F)

• Temperature resolution: 0.1°C (0.18°F)

• Integrated open circuit/fault detection for sensor reliability
