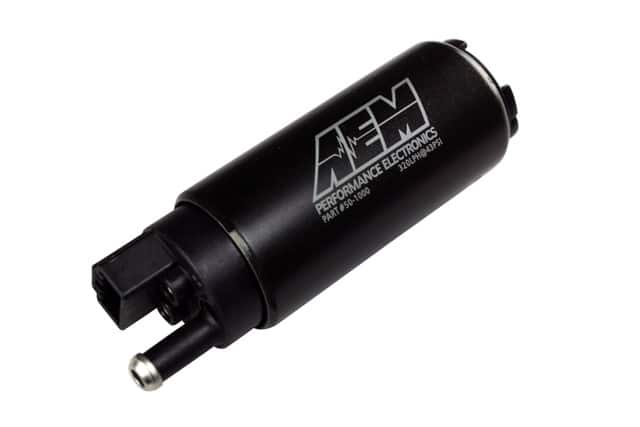

AEM – Hi Flow Fuel Pump 50-1000
£102.99 ex VAT - £123.59 inc VAT
This fuel pump is designed for in-tank mounting for use with gasoline and features a compact 39mm diameter that fits most applications. It has an offset inlet design that eases installations and includes a wiring harness, pre filter, end cap and rubber buffer sleeve. Every pump is tested to flow 340 lph at 40 PSI before it is packaged for sale.
Available on back-order
AEM – Hi Flow Fuel Pump 50-1000
AEM – Hi Flow Fuel Pump 50-1000 – AEM 340lph High Flow In-Tank Fuel Pump (Offset Inlet, Inline) . 340lph@43psi. Includes Fuel Pump, installation instructions, wiring harness, pre filter, end cap and rubber buffer sleeve. Included hardware is not application specific.
- Designed for high output naturally aspirated and forced induction EFI vehicles
- In tank design
- Tested to flow 340 lph @ 40 PSI
- 39mm diameter fits most applications
- Offset inlet design eases installation
- Each pump individually tested
- For gasoline vehicles
- Kit includes fuel pump, rubber sleeve and end caps, pre filter and flying lead
TECHNICAL SPECS:
- Weight: 12.5oz (354grams)
- Outside Diameter: 39mm OD
- External Materials: Black plated steel with laser etching
- Inlet Fitting: 7.7mm ID, 11.0mm OD. Offset Inline
- Outlet Fitting: 8 mm hose clamp. Offset
- PRV Activation: 80 PSI
- Impeller Design: Single Scroll Ceramic Turbine
VOLTAGE SPECS:
- Connector Terminal: 6 mm Spade (pos/neg)
- Min Voltage Input: 6 volts
- Max Voltage Input: 18 volts
- Current Draw (40 psi): 12 amps (13.5v)
- Current Draw (80 psi): 15 amps (13.5v)
- Fuse: 20 amps (13.5v)
