Evolution of Speed – BMW S55 Intake Manifold

Evolution of Speed – BMW S55 Intake Manifold

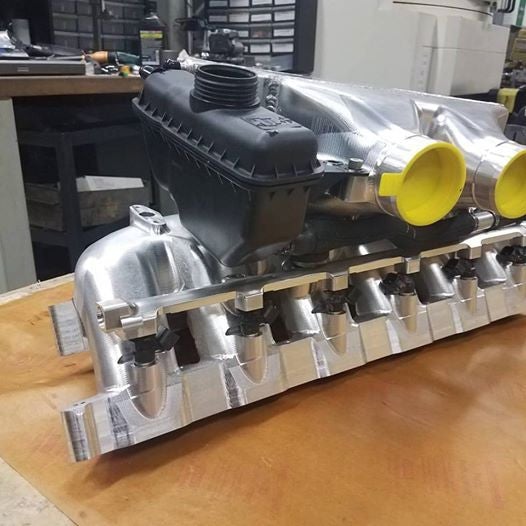

Evolution of Speed is proud to bring the bmw S55 intake manifold to market. This is the best way to add port injection to your F Series S55 powered BMW. This intake manifold was built for the serious enthusiast looking for a sleek way to increase fuelling capability while increasing plenum volume and the ability to port match intake runners on built cylinder heads.

The manifold can be ordered in the Base form, which includes injector plugs, or with fuelling that includes basic fuel hook up and injectors. You can also order the fuelling option without injectors, which allows you to provide your own injectors, but still comes with basic fuel hook-up. Be sure to select your injector size!

***If you select Base as an option you cannot add injectors, it will show as out of stock. Injectors can only be added if you select the fuelling kit, which can be ordered with and without injectors****

Features include:

*Fits F Series BMW S55 motors

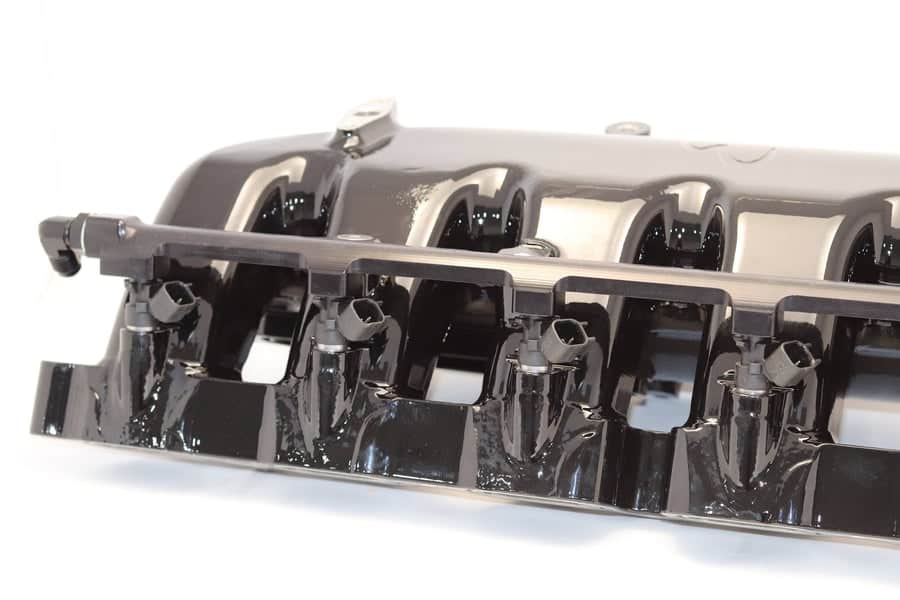

*Topside injector mounting (ease of service if needed and just plain looks cool!)

*Injectors are placed on optimal path towards the valves

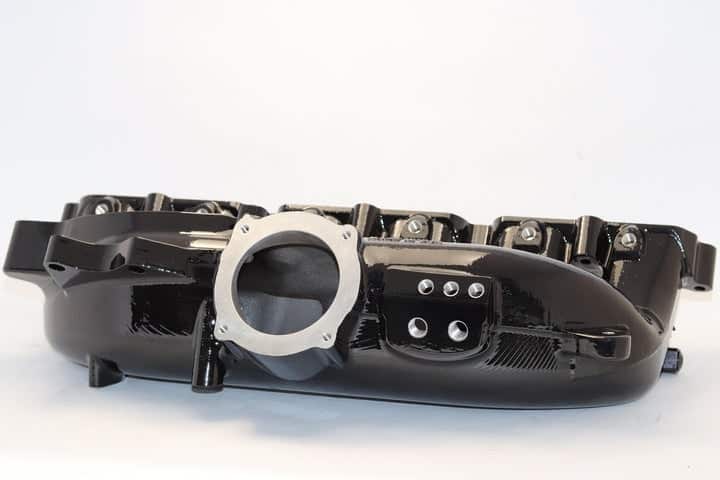

*Manifold has 1/8″ taps on the bottom side for port injected meth

*With basic fuelling kit you get PTFE smooth bore corrugated fuel line with crimped AN fittings

*52lb/hr injectors are standard, but are also upgradeable to 72lb/hr or 95lb/hr injectors

*factory and most aftermarket intakes fit perfectly

*Fuel rail supports -6an ORB fittings on either end(standard configuration is dead end rail)

*Phenolic spacer is included as standard with manifold purchase

*Injector plugs available for those wanting to use the manifold for port injected meth

*2ea 1/4″ NPT taps front side for sensors etc…

*3ea 1/8″NPT taps front side for sensors etc…

*High Gloss black powder coat is standard other colors available upon special request

*12ea OE gaskets included with the kit

*6ea extended length studs with hex head for easy install

*3pcs Standoffs for air box

*Superior design flow path from stock

*3/16″ Barb to 1/8npt adapter and 1/4″ barb to 1/8″ npt adapter included

*Each manifold is CNC machined after being cast to remove any excess material and weight involved in the casting process

*All manifold are cast and machined in the USA

*We control all aspects of the machining process in our in house CNC facility
