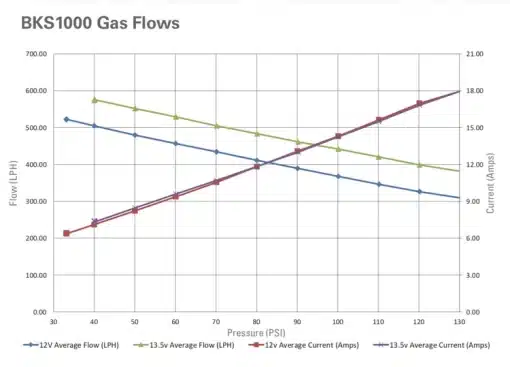

Brushless Pump Specifications:
• 550+ LPH @ 13.5V / 40 psi
• Capable up to 1000+ HP
• High flow, high pressure
• Reduced noise
• Suitable for both naturally aspirated and boosted applications

ALL NEW, NOW WITH PWM CONTROLLABILITY

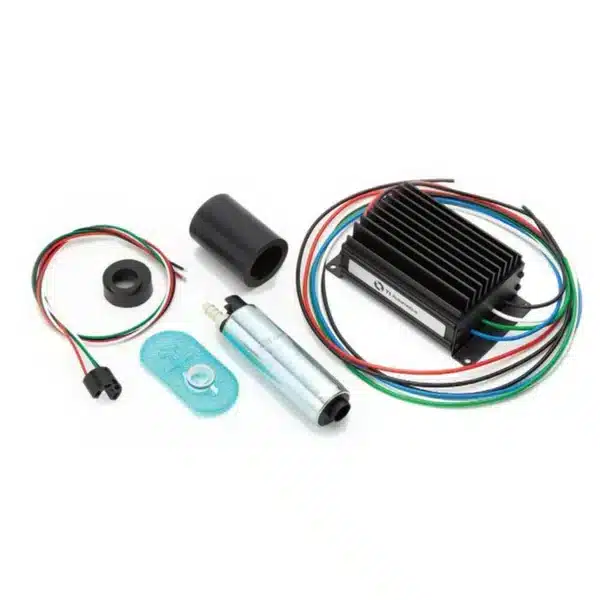

The BKS1001 is the next generation of our popular BKS1000 high pressure direct-fit fuel pump kit.

Now with PWM (pulse-width modulation) control, you’ll enjoy a true three-step controller with functions for 100% duty cycle, 50% duty cycle by grounding the command wire, and full PWM command by wiring the input to a 100Hz battery level PWM signal. More customization at the controller level means more power for your ride.

KIT SPECIFICATIONS:
• Direct-fit replacement
• PWM (pulse-width modulation) input command
• Supports 1,000+ horsepower
• High pressure, high flow E5LM brushless screw pump
• Reduced system current draw
• Suitable for naturally aspirated and
boosted applications
• Replaces current BKS1000 part number

Link to Ti Automotive Specs:

https://aftermarket.tiautomotive.com/projects/bks1001/
