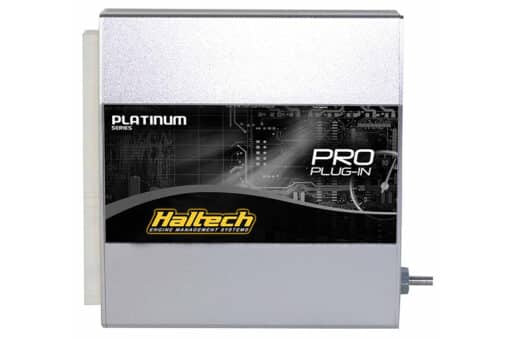

Haltech – Platinum PRO Plug-in ECU Honda EP3 (HT-055047)

Haltech – Platinum PRO Plug-in ECU Honda EP3 (HT-055047)

Haltech – Platinum PRO Plug-in ECU Honda EP3 (HT-055047)

Suits: Honda EP3 and DC5 (03-04). Manual transmission only.

Includes: Platinum PRO Direct Plug-in ECU, Plug and pins for auxiliary I/O harness. Haltech CAN adaptor cable DTM-4 female receptacle/socket to 8 pin black Tyco 3″/75mm (used to adapt a Platinum series ECU to a DTM-4 Elite CAN system), USB programming cable and USB Software Key.

Notes: Requires a CAN I/O 12 Expander Box to accept an input from a flex fuel sensor.

If you are after a simple plug-and-play option and your car still has its original engine and wiring in it, a Plug-in ECU is the easiest and quickest solution. You simply unplug the factory ECU, and plug the Haltech ECU directly into the factory harness. Load your base map and you’re ready to go!
Direct plug and play replacement of the OEM ECU, no rewiring necessary
Uses the car’s factory sensors
Windows 2000, XP, Vista, Windows 7 & 10 compatible software
Real-time programming, instant hesitation free adjustment while the engine is running
Fully user definable 32 x 32 mapping
Tuning via Volumetric Efficiency (VE), Injection time or Lambda Correction (MAF)
Selectable onboard internal MAP sensor rated to 150kPa (up to 1.5 Bar or 22psi boost)
Wideband “auto-tuning” using user definable target AFR table
