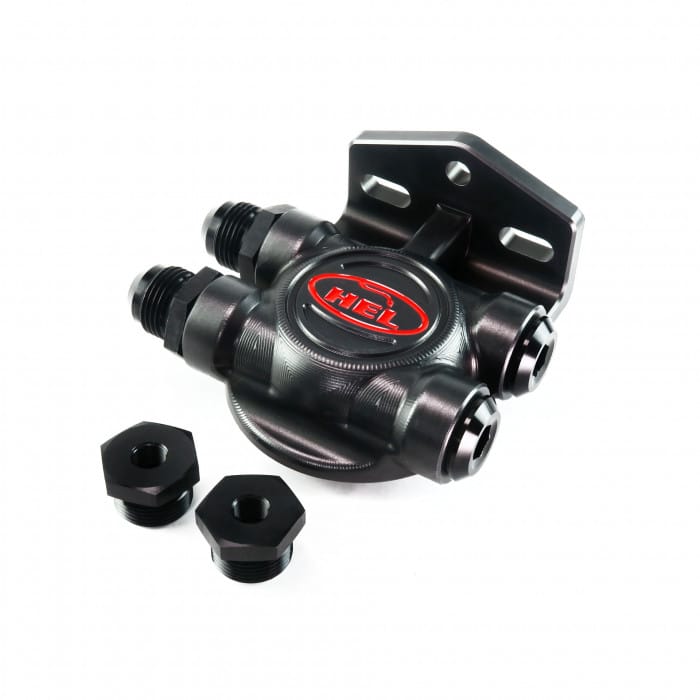

HEL – Performance Solid Billet Oil Filter Relocation Remote Head

HEL – Performance Solid Billet Oil Filter Relocation Remote Head

HEL – Performance Solid Billet Oil Filter Relocation Remote Head

The HEL Performance oil filter relocation remote head is the ideal solution to relocate your oil filter due to lack of space, when performing an engine conversion or making an oil cooler installation easier. Used in conjunction with a relocation take off plate, it’s designed to move the oil away from the engine.

To make it a stand-out piece in your engine bay, our design team took extra care detailing the head and giving it a pleasing bull-nosed finish. Once it’s machined in-house from a solid piece of 6082-T6 billet aluminium, it’s bead-blasted and hard-anodised for extra protection. Finally, it’s lovingly finished with a hand-painted HEL logo.

For total flexibility, we’ve given the head a total of four ports. This means it can be fed and returned solely on either the left or right side, or you can run your hoses transversely across the head. If you wanted, you can use one or two of the spare ports to attach oil sensors (sensor port adapters required).

Available with either a M20 x 1.5 or 3/4″-16 UNF center bolt, it’s suitable for most external oil filters with an o-ring diameter of 56mm to 72mm.

What’s Included
1x HEL Performance Solid Billet Oil Filter Relocation Remote Head
1x M20 x 1.5 or 3/4″ UNF Oil Filter Thread with Nut
2x -8 AN or -10 AN Adapters
2x M22 x 1.5 Blanking Plugs
1/8″ NPT Sensor Ports (optional)
Installation Guide
