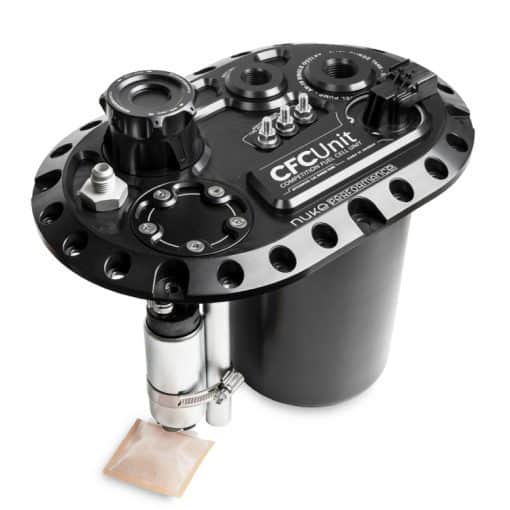

Nuke Performance – CFC Unit for brushless fuel pumps – Competition Fuel Cell Unit, with integrated fuel surge tank – 150-05-204

We offer a selection of fuel pumps that is a perfect fit for our CFC Unit. Choose between fuel pumps according to your specifications.
In this category you choose the lift pump, this fuel pump does not need to be a high-pressure fuel pump as its only mission is to fill the fuel surge tank within the fuel cell.
Notice that you can only select one option per category and if you want to add others, visit the product page of each part.

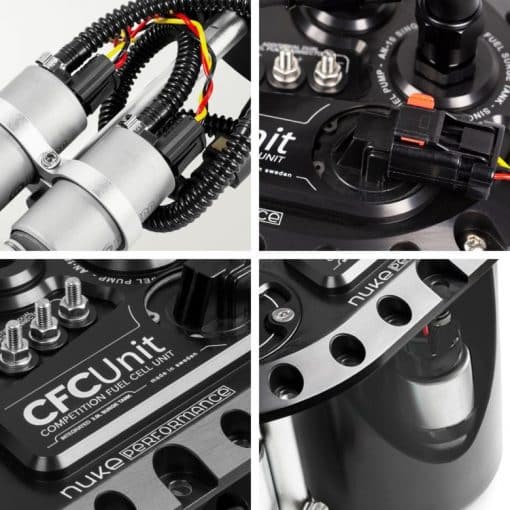

n this category, you choose the brushless high-pressure fuel pump that feeds your engine and is placed within the internal fuel surge tank. If each fuel pump does not reach your flow/horsepower requirements, use two fuel pumps of the same kind. The CFC Unit is delivered with brackets and fittings for a single or dual setup.

For a simple, quick, and safe installation – use our SAE fuel pump mounting kit. Safe for all types of fuels and includes everything you need to install the listed fuel pumps within the integrated fuel surge tank.
Choose between if you are running a single or dual fuel pump setup. The shown kits are for the listed fuel pumps if you do not find your wanted fuel pump in this list, visit the product page to learn more.
Notice that you can only select one option per category and if you want to add others, visit the product page of each part.

Add a high-quality fuel level sending unit from the American fuel cell manufacturer Pyrotect. Fits directly to the Nuke Performance CFC Unit with the included hardware. Order with or without a fuel level gauge.
Approved for petrol, methanol, ethanol. Available in several different lengths, make sure to select the right sized fuel level sender when placing order. If you want more, visit the product page for more info.
Notice that you can only select one option per category and if you want to add others, visit the product page of each part.

Add outlet AN-10 ORB Fitting
Select if you want to add an outlet fitting for your CFC Unit. This thread is of AN-10 ORB and is available between AN-6 to AN-12.
For the low-profile CFC Unit, you need x1 of AN-10 ORB fitting.

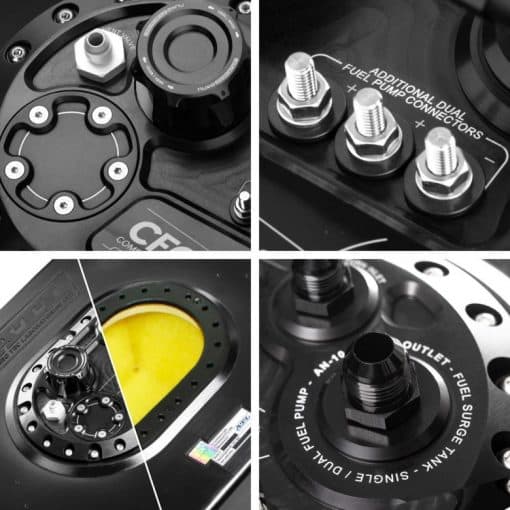

The outlet thread of the CFC Unit is AN-10 ORB, the return port has an AN-8 ORB thread. Make sure to select the preferred size for all ports.
Notice that you can only select one option per category and if you want to add others, visit the product page of each part.

Select if you want to add a return fitting for your CFC Unit. This thread is of AN-8 ORB and is available between AN-6 to AN-12.
For the low-profile CFC Unit, you need x1 of AN-8 ORB fitting.
The return port thread of the CFC Unit is AN-8 ORB, the outlet port has an AN-10 ORB thread. Make sure to select the preferred size for all ports.
Notice that you can only select one option per category and if you want to add others, visit the product page of each part.

Select if you want to add a Nuke Performance Fuel Cell Vent Kit that fits straight to the CFC Units vent valve.
The included vent valve of the CFC Unit is an AN-6 version, if you want to use an AN-8 or AN-10 version you also need to change the vent fitting to one of the same size as the selected vent kit.
Notice that you can only select one option per category and if you want to add others, visit the product page of each part.

Select if you want to add a Nuke Performance Fuel Filler Kit with a Remote quick lock filler cap and a 90cm (3ft) fuel filler hose with accessories.
The CFC Unit is delivered with a low-profile filler cap, if you want to use a remote fuel filler solution we offer a 50mm (2″) fuel hose solution with a quick lock filler cap for remote installation.
More information about the Fuel Filler Options
Notice that you can only select one option per category and if you want to add others, visit the product page of each part.
