Platinum Racing Products – Nissan RB30 Wet Sump Block Brace (PRP-NRB30WSBB)

Platinum Racing Products – Nissan RB30 Wet Sump Block Brace (PRP-NRB30WSBB)

Platinum Racing Products – Nissan RB30 Wet Sump Block Brace (PRP-NRB30WSBB)

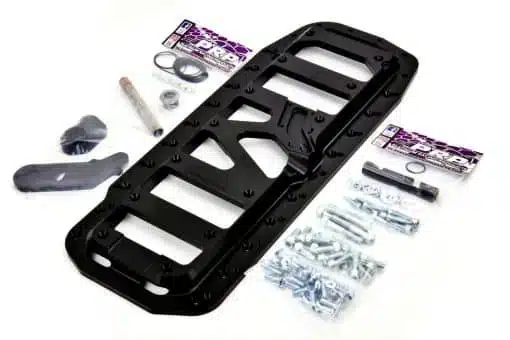

The Platinum Racing Engine Cradle (PREC) has been constructed from hi-grade aircraft quality billet aluminum and the product has several features that benefit.

Suits all factory 2wd blocks and converts to 4WD wet sump RB20, RB25, RD28, RB30

Over and above converting your 2wd RB/RD engine block to 4wd. With the kit provided and after a few modifications, a standard GTR type sump will bolt straight on.

The Platinum Brace overlays and supports the factory main cap cradle, and main Main Caps cease walking!, have you ever noticed shiny mating surfaces of your block and main caps? The mains are walking and moving enough to polish the mating surfaces. The platinum block brace ties in the OEM cap cradle and stops the walk.

The standard main girdle is a great design and should be retained as a one-piece item, then strengthened with the PREC, as main bearing cap walk, or movement may be experienced otherwise. There is also a valid argument for the use of a similar metal when it comes to the main caps and expansion/contraction of dissimilar metals when you consider a billet cap, different metals expand at different rates, Cast Iron blocks should have cast iron main caps, the harder the cap, the less shock is absorbed, the more detonation becomes critical as it has no place to go but into the rods.

We recommend this system up to 1000wheel HP, then our integrated main cap brace over 1000 hp.

Aftermarket diffs crack blocks! it’s a fact, the Platinum Block brace will not only stop block twist but stops the diff snapping the block under load, energy is dissipated through your 40mm thick integrated and webbed brace, blocks cracking and snapping become a thing of the past!

Any questions please ask.

The bolt kit is included with the brace however the APR upgrade kit is extra if it is required

*PLEASE NOTE: 1/2 inch ARP upgrade, requires block machining for fitment.
