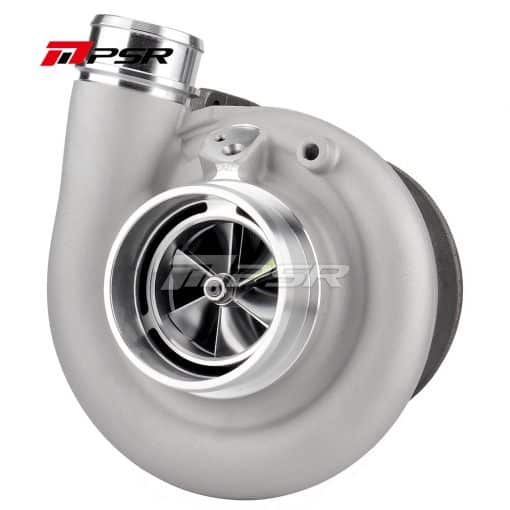

Pulsar – 300 Series – NEXT GEN Billet 363 366 369 372

Pulsar – 300 Series – NEXT GEN Billet 363 366 369 372

Pulsar – 300 Series – NEXT GEN Billet 363 366 369 372

Dual Ceramic Ball Bearing Systems
Billet Compressor Wheels with Extended Tapered Tip Technology
Inconel 713c 80*73mm Turbine Wheel
4 Compressor wheel options available
G2 compressor cover with ported-shroud inlet and integrated speed sensor port
Units come with 0.91 T4 Divided Turbine housing
Max Flow Rate: 100+ lb/min, rated @ 950FWHP

SPEC

Bearing Systems: Dual Ceramic Ball Bearing
Compressor Wheel: 363(63*87mm, 7+7), 366(66*91mm, 7+7), 369(69*94mm, 6+6), 372(72*96mm, 10+0)
Turbine Wheel: 80*73mm
Compressor Inlet: 4.0 Hose
Compressor Outlet: 2.5 Hose
Turbine Inlet: T4 Divided
Turbine Outlet: 4.21? Marmon
Oil Feed: 1/4? NPT
Oil Drain: Std T4 Flange
