Pulsar – PTG Series – PSR7975G / 42-1450 Compact
Pulsar – PTG Series – PSR7975G / 42-1450 Compact

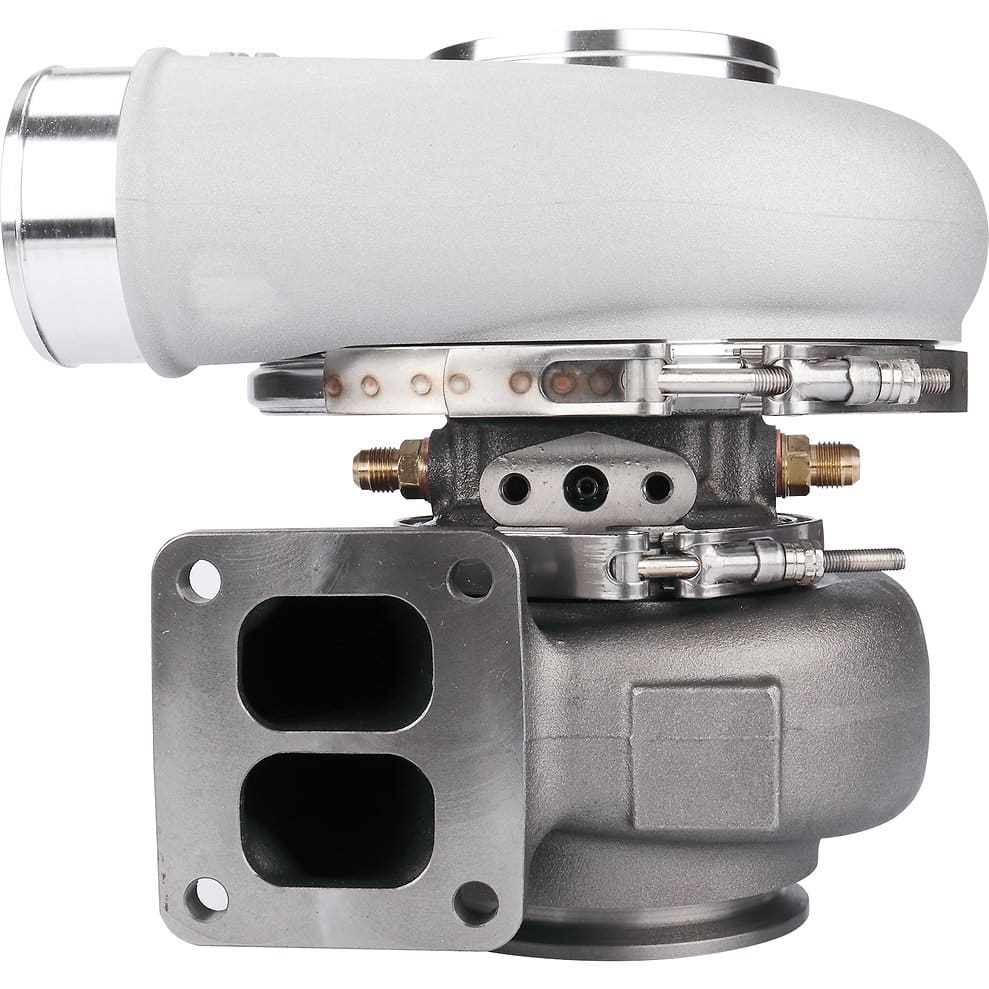

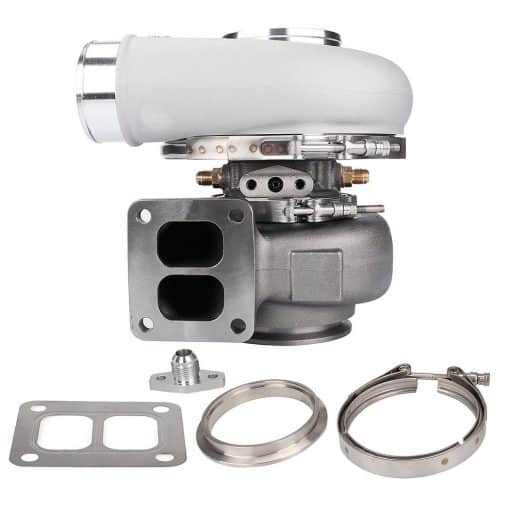

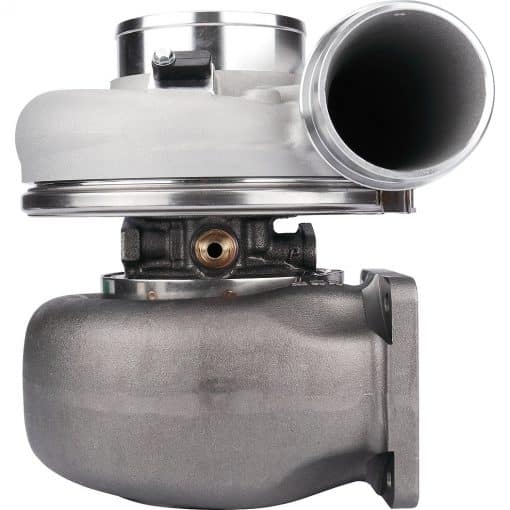

Pulsar PSR7975G Compact
Please note, T51R housing option requires an extra 7 days handling time
Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing play in the shaft.

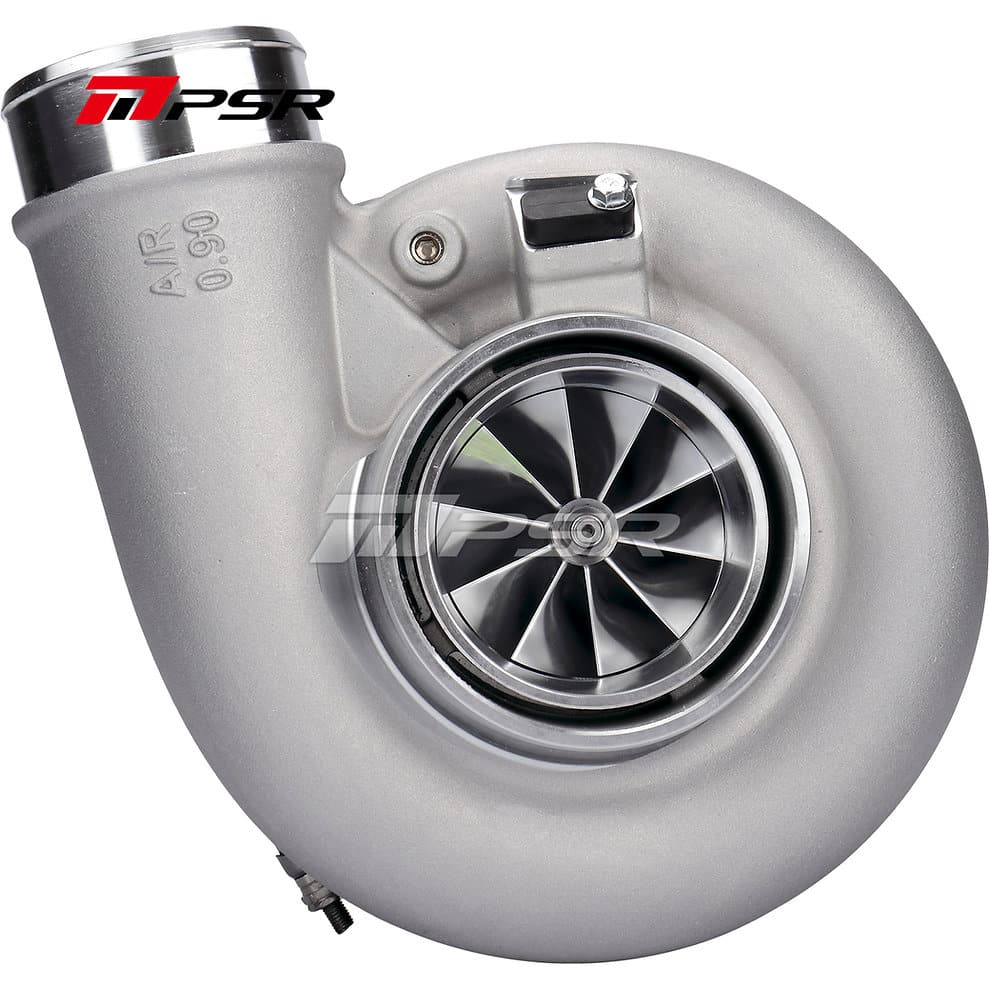

10 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology
9 Blade G-Aero Inconel 713c Turbine Wheel
Anti-Surge ported-shroud compressor inlet, cover with integrated speed sensor port
SPEC
Compressor Wheel: 79*91mm
Turbine Wheel: 82*75mm
Compressor Inlet: 4? Hose
Compressor Outlet: 3? hose
Turbine Outlet: 3.5? V-Band
Water Ports: -6AN

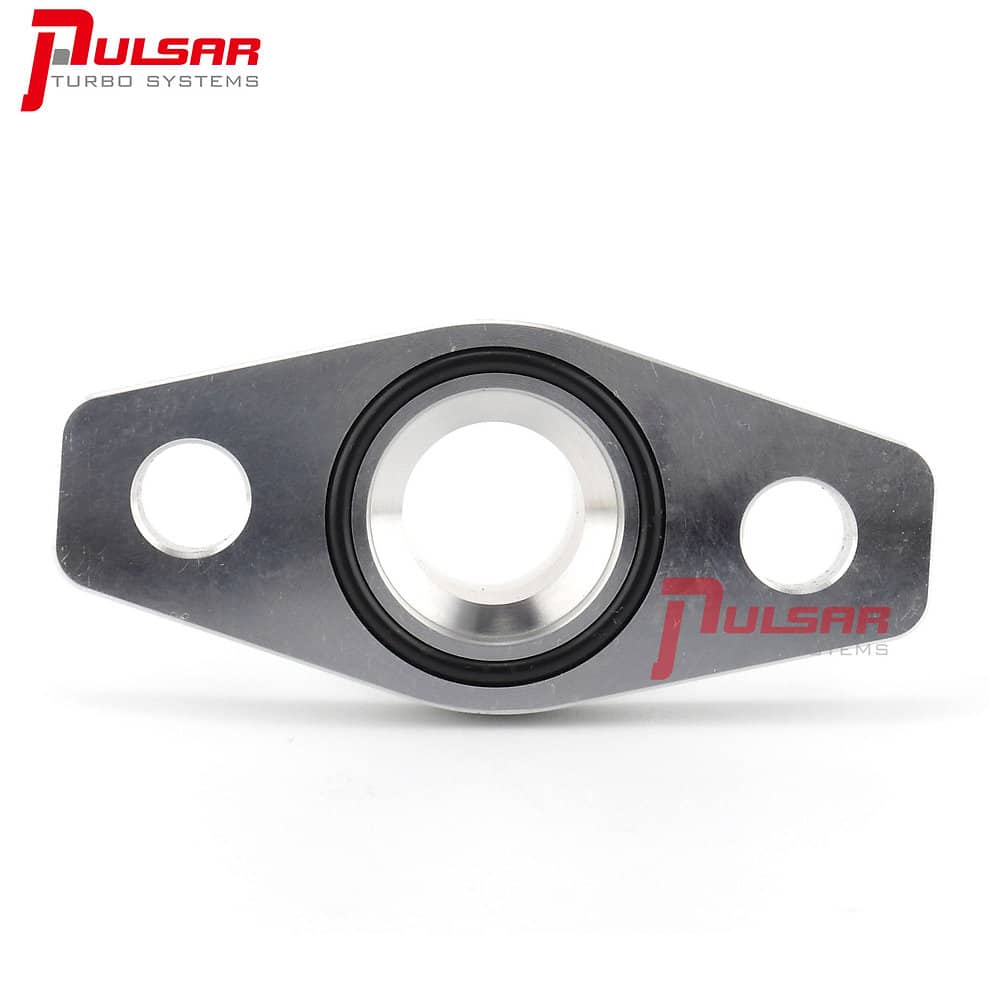

Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Non-Restricted)
Oil Drain: -12AN(O-Ring sealed Flange Kit Incl?)
*Notes*
T4 1.15 A/R, dual v-band 1.15 and 1.28 housings are with an open style inlet and 3.5″ outlet
T4 1.28 A/R housing is with a twin-scroll inlet and 4″ outlet
It’s strongly recommended to run water cooling to aid reliability (needed for warranty)
Contact Us for further Information by filling out this FORM
Be sure to follow our Instagram page for new offers and the latest products @Partspluguk
| Turbine Housing Options | 1.15 a/r Dual V Band, T4 1.15 Inlet V Band Outlet, 1.28 a/r Dual V Band, 1.28 T4 Twin Scroll Inlet 4" V Band Outlet, 1.01 a/r Dual V Band, 1.15 T4 Divided Inlet |
|---|---|
| Compressor Housing Options | Standard Housing, T51R Mod Housing |
