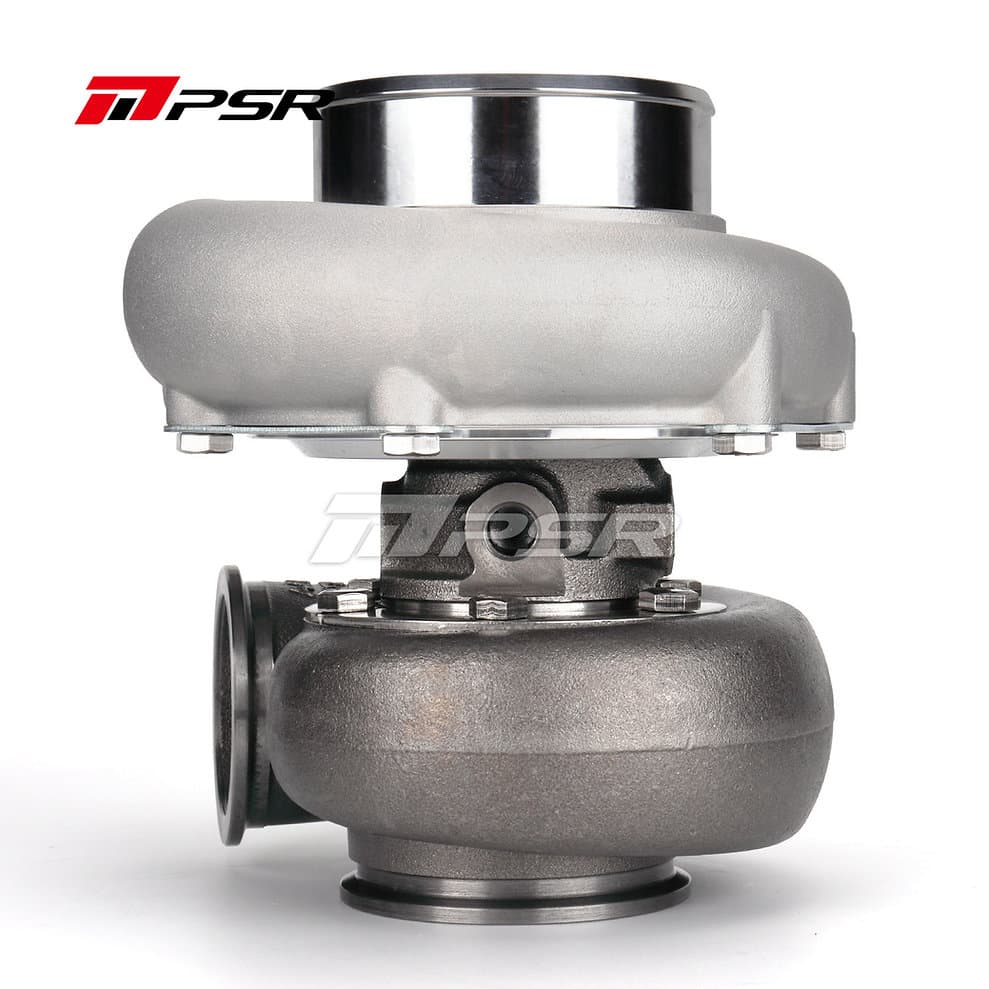

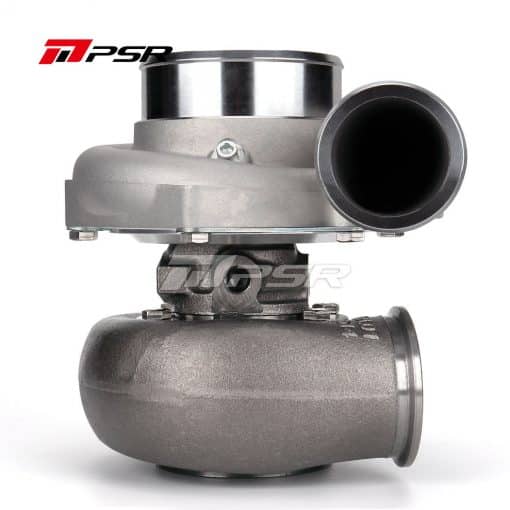

Pulsar – PTX GEN 3 Series – PTX3584R
Pulsar – PTX GEN 3 Series – PTX3584R
Pulsar GTX3584R Gen 3
Recommended displacement 2.0 to 5.0 litres with power outputs up to 1000hp possible.
Dual Ceramic Ball Bearing System

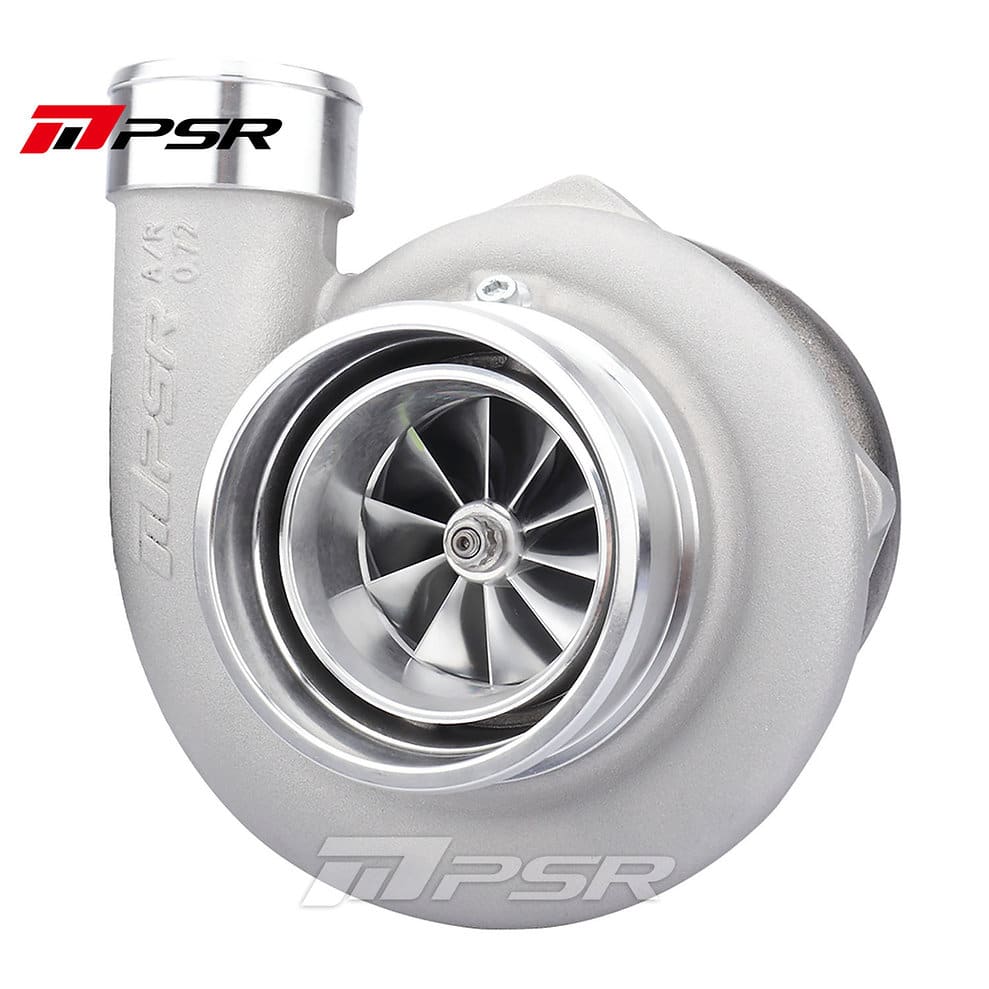

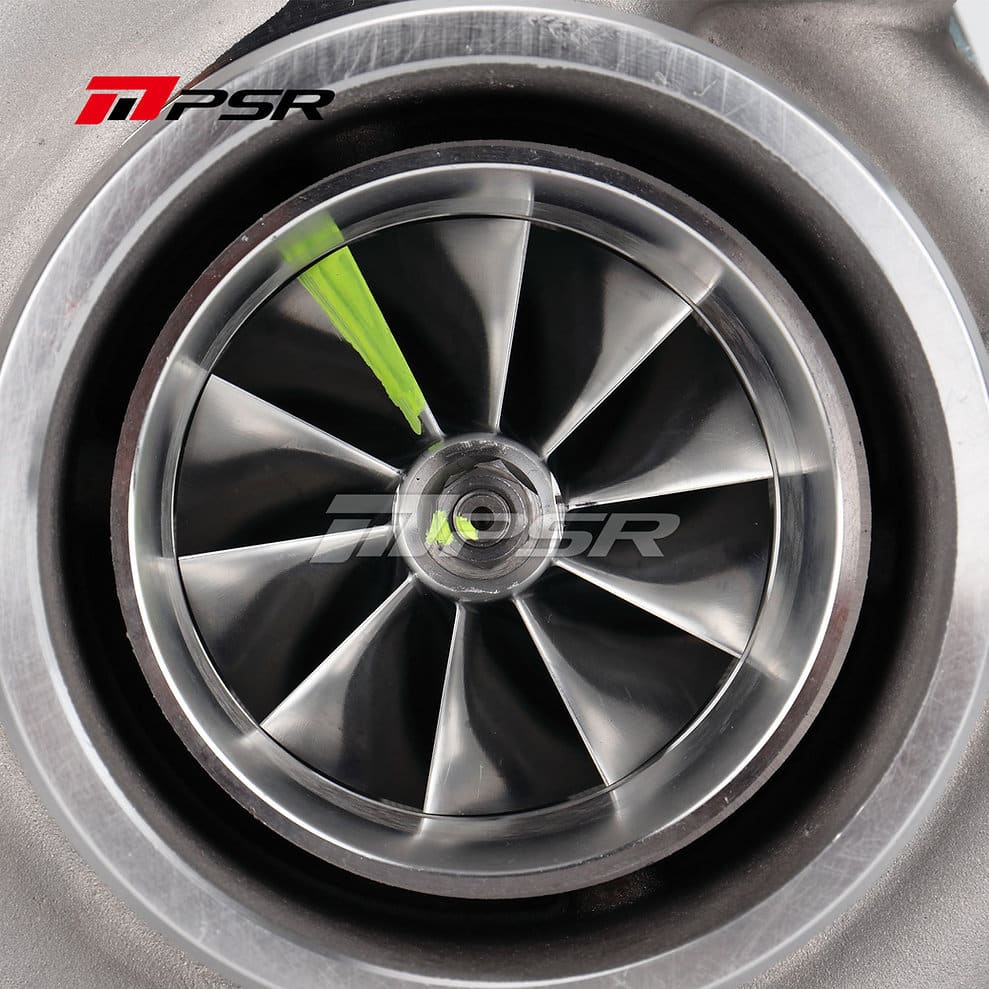

10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
Inconel 713c 10 Blade Turbine Wheel for increased output

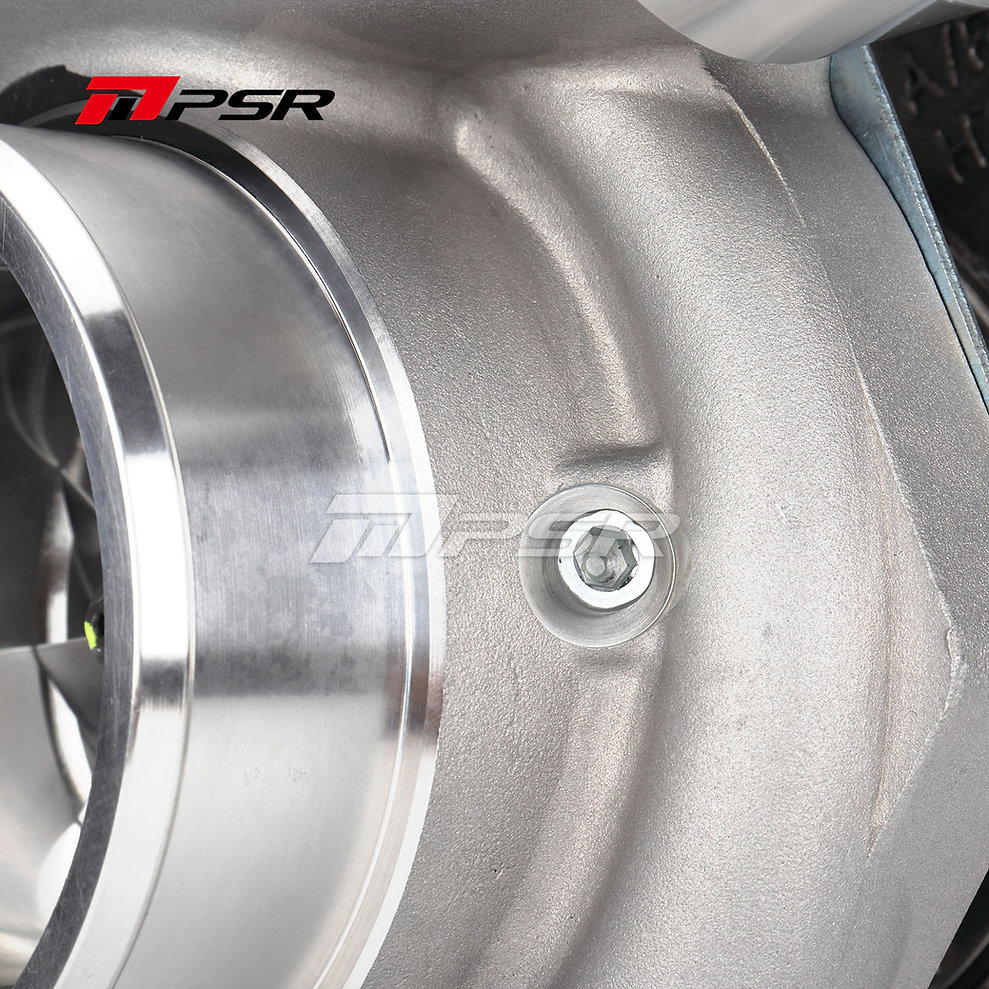

Cover with integrated Speed Sensor Port
0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, T4 0.82 V-Band outlet etc. turbine housings available.

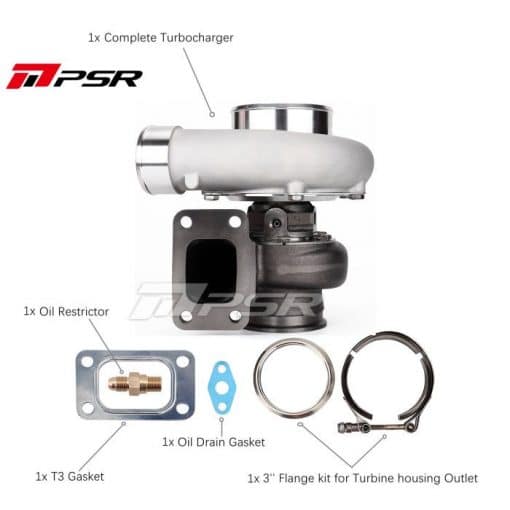

V-Band Flange kit(s) for the exhaust housing included
Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP
Larger Turbine Wheel for Higher flow
Approx 60 to 100 hp increase over Gen 2 version.
SPEC
Compressor Wheel: 67*84mm
Larger Turbine Wheel: 74*66mm
Compressor Inlet: 4.0? Hose
Compressor Outlet: 2.5? Hose
Turbine Inlet: T3, T4, or 2.5? V-Band
Turbine Outlet: 3? V-Band (3.55?OD)
Oil Feed: -4 AN connect to the Oil Restrictor
Oil Drain: Std T3 Flange
Water In/Outlet: M14*1.5
It’s strongly recommended to run water cooling to aid reliability.
Contact Us for further Information by filling out this FORM
Be sure to follow our Instagram page for new offers and the latest products @Partspluguk
| Turbine Housing Options | T3 .63 V BAND, T3.82 V BAND, 1.01 DUAL V BAND, .83 DUAL V BAND, T4 .82 V BAND, T3 1.06 V BAND, 0.82 SS DUAL V BAND, 0.82 SS DUAL V BAND +T25 ADAPTER, 0.82 SS DUAL V BAND +T3 ADAPTER, 1.03 SS DUAL V BAND, 1.03 SS DUAL V BAND +T25 ADAPTER, 1.03 SS DUAL V BAND +T3 ADAPTER |
|---|---|
| Compressor Housing Options | Standard Housing, T51R Mod Housing |
