Pulsar – PTX Series – PTX3067R Gen 2
Pulsar – PTX Series – PTX2867R Gen 2

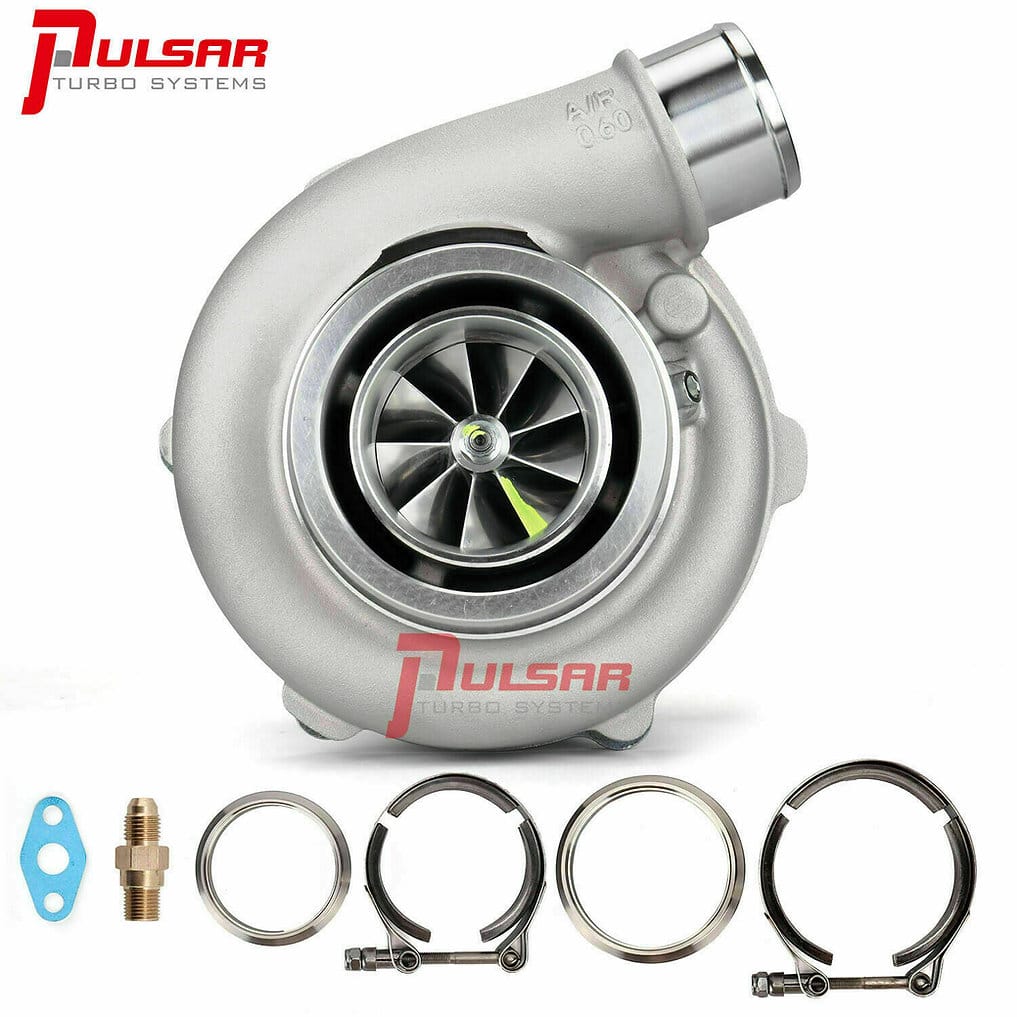

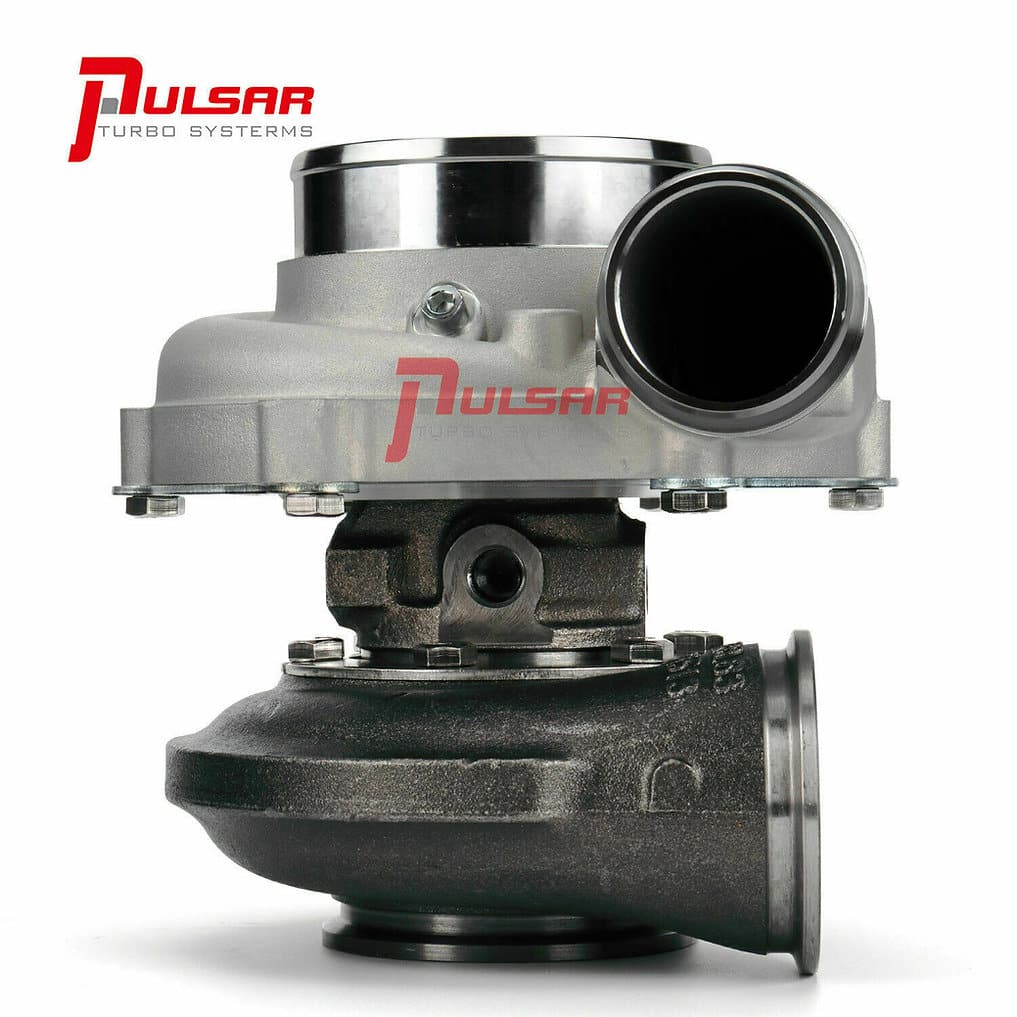

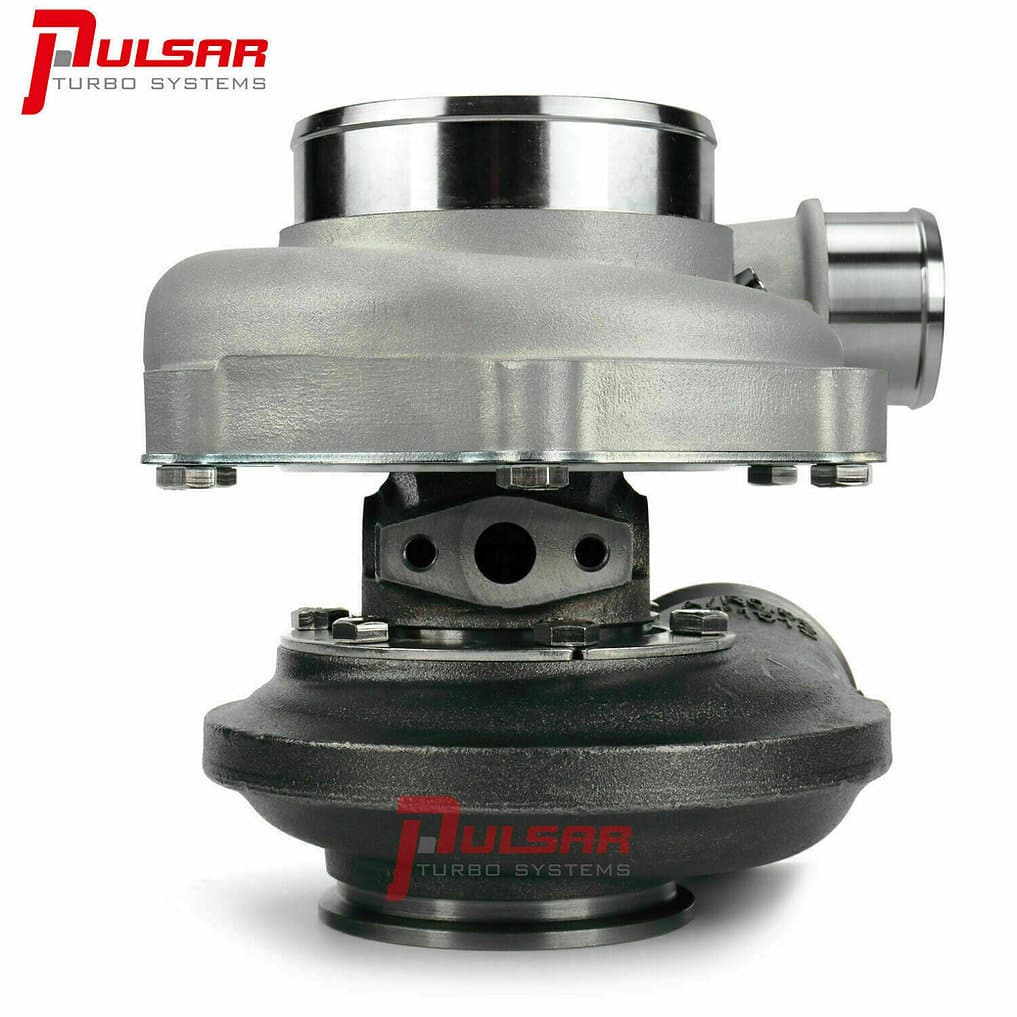

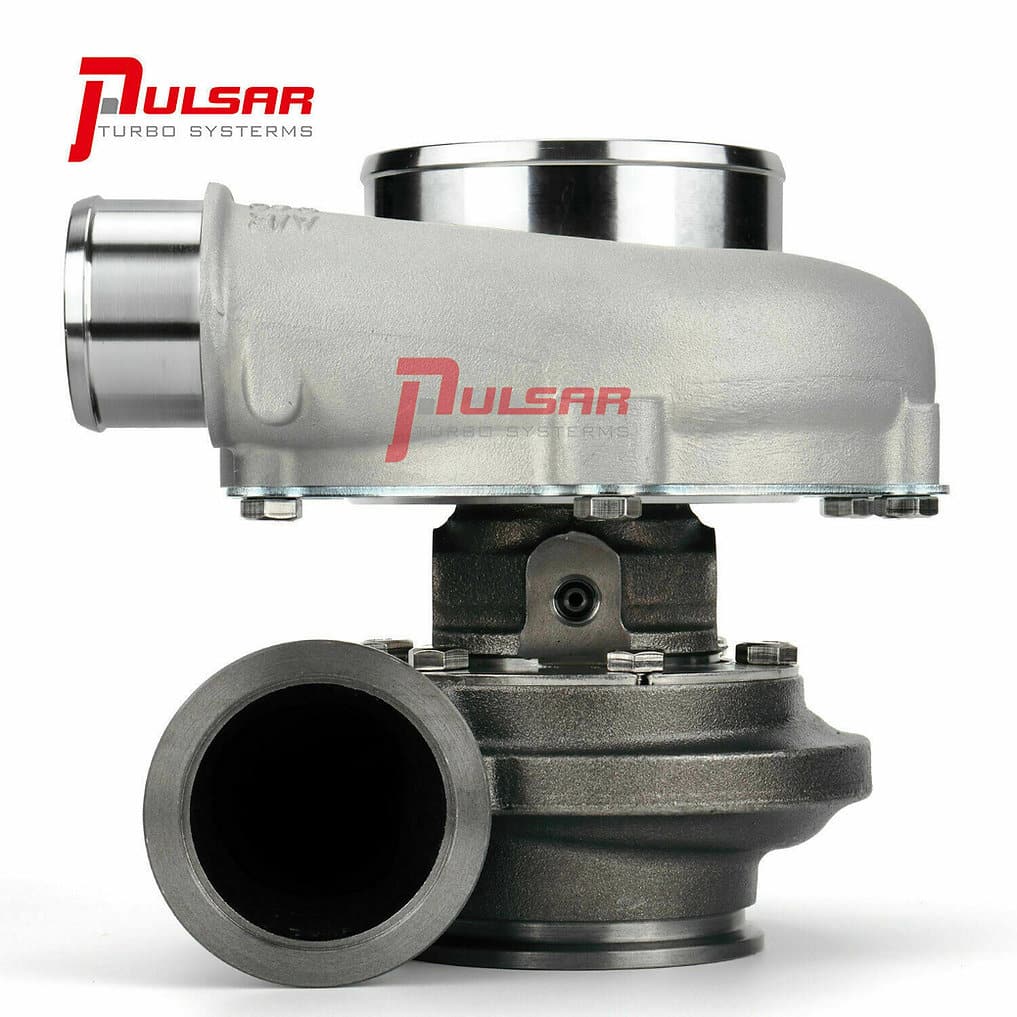

Pulsar PTX2867R Gen 2
Please note, T51R housing option requires an extra 7 days handling time
Recommended engine displacement 1.6 to 2.5 litres. Power outputs up to 550 hp possible.
Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing shaft movement.
50 / 67mm 8 blade upgraded billet compressor wheel with better flow than the 11 blade Gen 1 wheel.

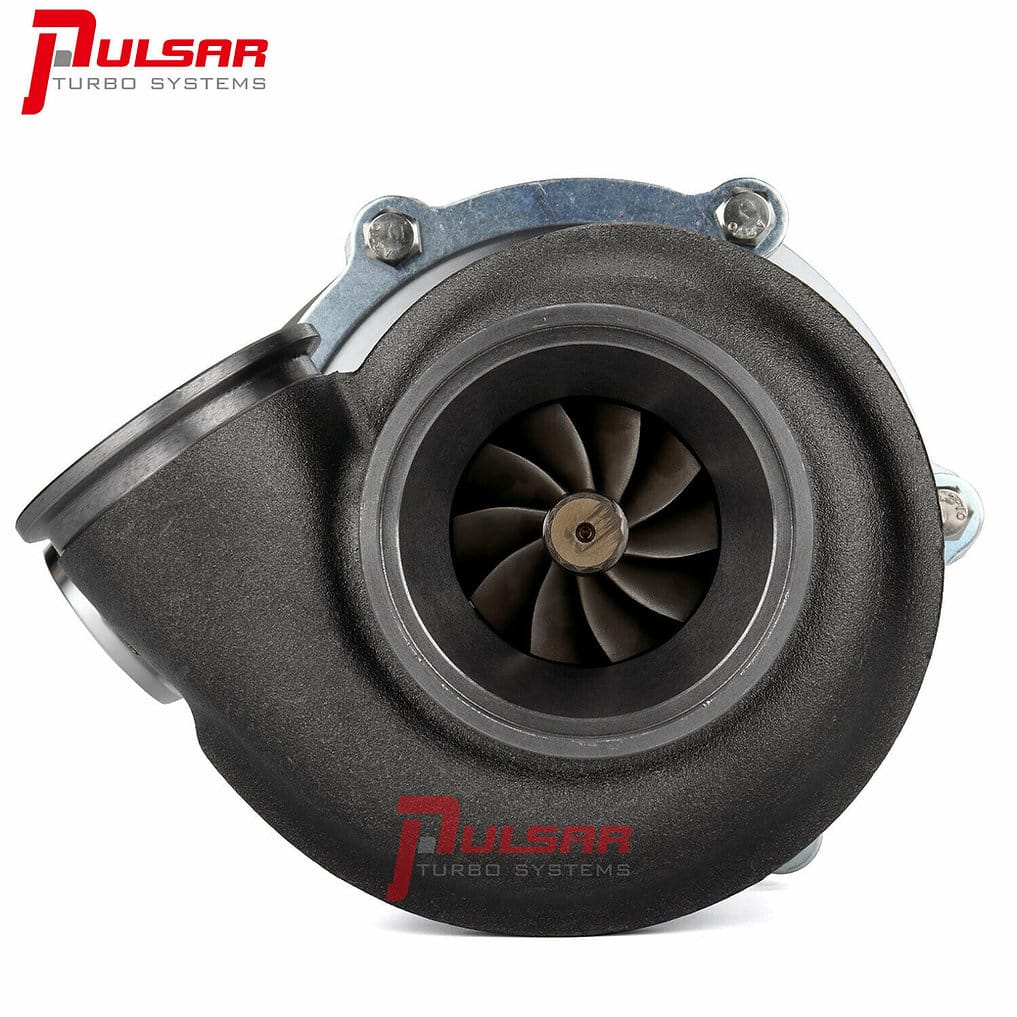

Inconel 713c 54 / 47 mm turbine wheel
Gen2 cover with integrated speed sensor port and anti surge.
0.64, 0.86 A/R T25 Inlet, 5 Bolt Outlet, 0.82 A/R dual V-BAND stainless steel turbine housing options all available
Standard or T51R mod compressor housing options available
Supplied with manifold to turbine gasket and 5 bolt gasket (where applicable). Oil feed restrictor supplied (where applicable).
Wastegate actuator supplied on internally gated units with compressor housing.
Compressor Inlet :3″
Compressor Outlet: 2″
Oil Feed: 7/16-24 UNF
Oil Drain: Std T3 oil drain flange
Water In/Outlet: M14x1.5
| Turbine Housing Options | T3 .63 V Band, T3 .82 V Band, .83 Dual V Band, .82 SS Dual V Band, 0.82 SS Dual V Band +T25 Adapter, 0.82 SS Dual V Band +T3 Adapter, 0.64 SS Dual V Band, 0.64 SS Dual V Band +T25 Adapter, 0.64 SS Dual V Band +T3 Adapter, No Turbine Housing, 1.01 Dual V Band Z 1.03 SS Dual V Band, 1.03 Dual V Band +T25 Adapter, 1.03 SS Dual V Band +T3 Adapter, 0.84 T4 Divided (4 Weeks Lead Time), 1.06 T3 |
|---|---|
| Compressor Housing Options | T51R Mod Housing, Standard Housing |
