Turbosmart – BOV Pro Port GenV Purple (TS-0208-1113)

Turbosmart – BOV Pro Port GenV Purple (TS-0208-1113)

Turbosmart – BOV Pro Port GenV Purple (TS-0208-1113)

Turbosmart Blow Off Valve Pro Port GenV Blue

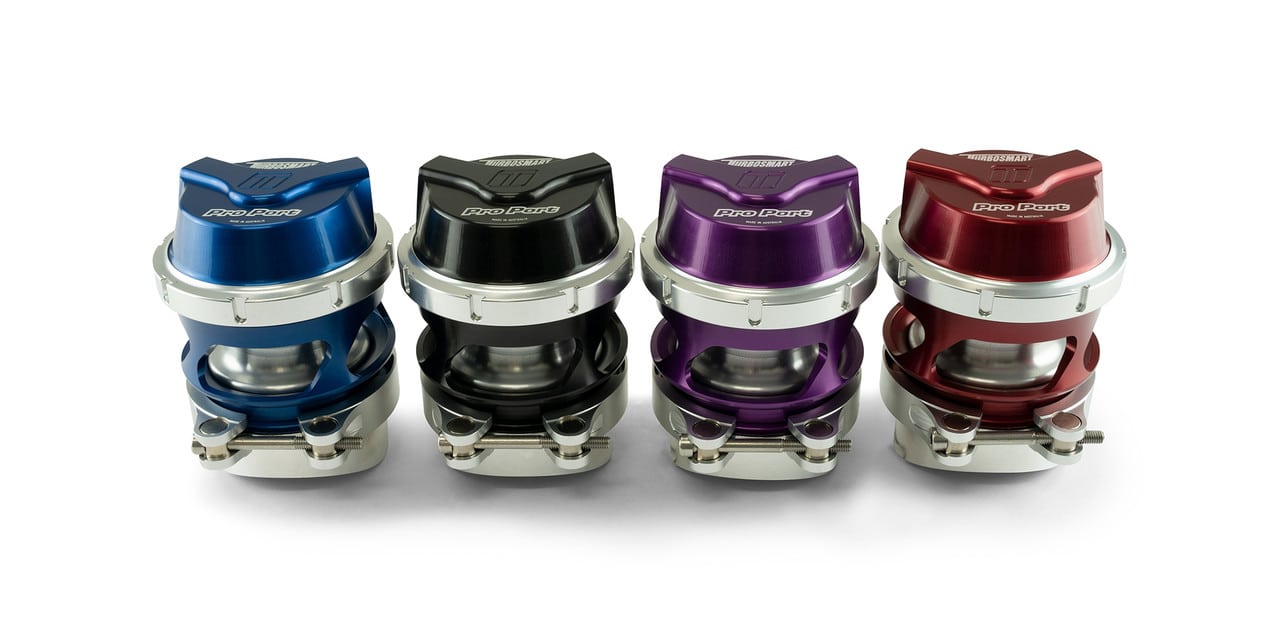

ProPort by Turbosmart is an All New 54mm (2.13in) Blow Off Valve with a tiny footprint and massive flow. The ProPort flows 420 cfm which is enough for 3500HP and is in a league of its own standing 30mm (1.2in) lower than PowerPort while flowing over 25% more than the Market leading 50mm Raceport. Features include our unique locking collar design, new unique vent profile, sensor cap option and spring options for all turbocharged and supercharged applications.

The ProPort was a result of over 25 years of Blow Off Valve manufacturing experience and 12 months of internal development. The design is CFD driven & real world validated for maximum possible flow based on the demands of the Tuning & Motorsport Market. The Milspec Diaphragm operated valve is highly responsive while using our Boost-Balance system which means the more boost you feed it, the better it seals!

Available with an onboard position sensor as an option, we utilize a non-contact hall effect sensor for position of the valve which means no through-holes in the cap ensuring no chance of leaks. The data this can provide for professional & amateur teams alike is invaluable when every pass & every minute on track counts!

The Quick Release V-Band system is of the quality you have come to expect from Turbosmart as our GenV cap profile is easily distinguishable and includes 2 x 1/8NPT reference ports on a cap that can be rotated for simplifying reference hose runs in complex engine bays.

Features:
2 x ? NPT Reference Ports
Mil Spec Proprietary Diaphragm
Anodised 6000 series billet Aluminium Body & Valve
Quick Change V-Band Fitment
Unique Locking Collar Design
Optional Valve Position Sensor

Frequently Asked Questions:
How much boost can this take?
How much do you have? The technical limit is over 220psi maintained but it can even do more than this in short bursts. The reality is you?re probably asking at what point it will leak & the answer is it won?t. The Turbosmart Boost-Balance System means the more boost you are making, the better it will seal. We do this to maximise response and boost holding characteristics as we will always have more force pushing the valve closed, than you will have boost trying to push it open.

So what is the limit of this valve?
Given the more boost you have the better it seals, so what is the limit? It?s actually the ability of the valve to flow air and that limit is around 3500HP worth of air. It will never leak, even with more than that power level, however you may start to experience audible compressor surge when attempting to bypass more than 3500HP. And if that is you, great news – We have the PowerPort for over 3500HP Applications.

What Fittings does it use?
The ProPort is based on the GenV architecture and as such features our GenV styled cap with 2 x ? NPT reference ports. The cap can be rotated and clocked to enable the most suitable routing of reference hoses. We include hose end fittings for use with silicon & simple hose connections, however you can also use ? npt adaptors to 3AN or 4AN lines if you prefer.

Can I upgrade to a Sensor Cap?
Yes. If you already have a ProPort there is an upgraded sensor cap available (TS-0208-2212) which comes with a new cap & sensor which can be swapped out & fitted to your existing ProPort at a later date. Note, we only produce the Sensor Caps in black though.

I have a Supercharger – Is this suitable?
Yes. We have spring options available in the spares and accessories area of the website which means you can set this up for Supercharger Applications. It was designed to do both.
