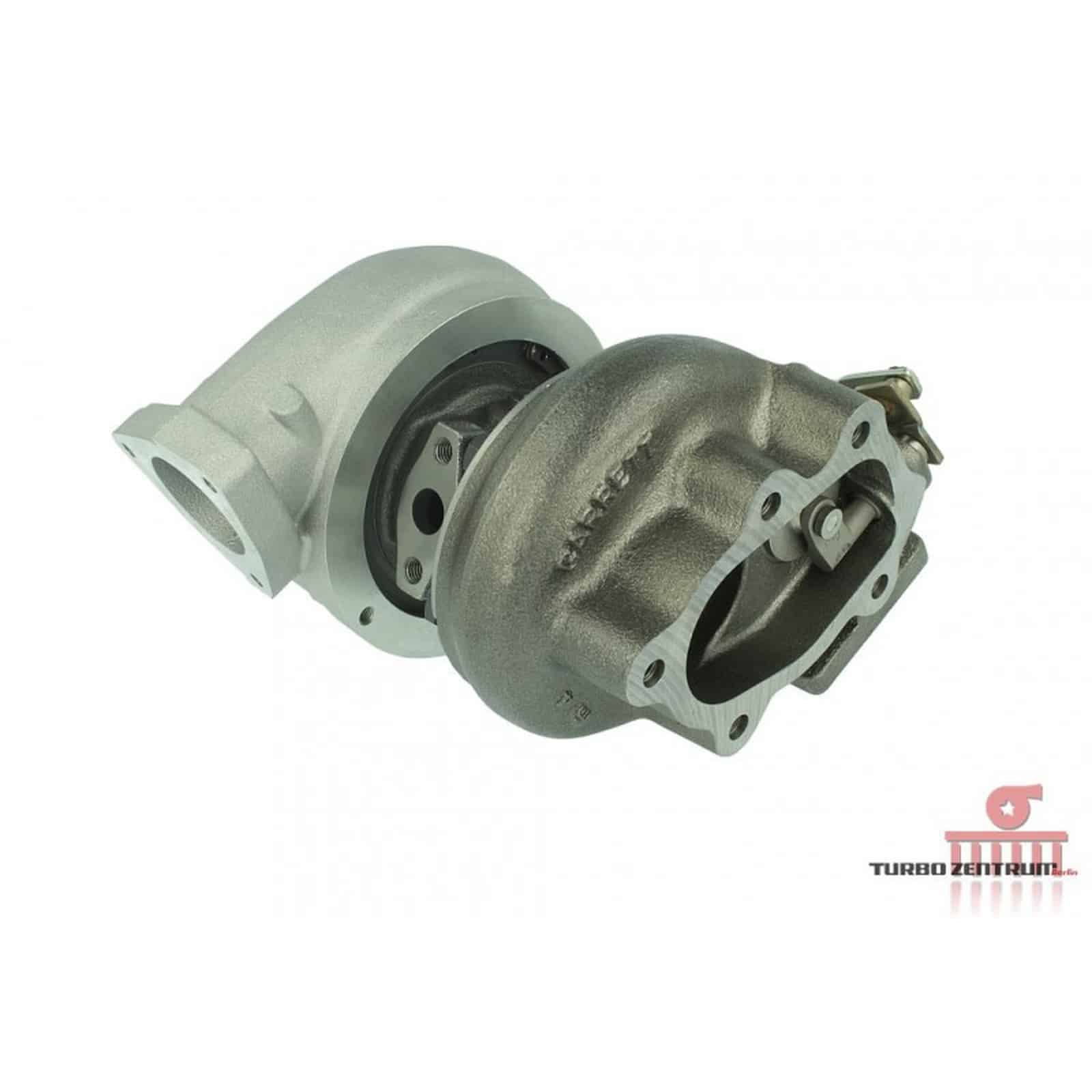

Garrett – GT2554R / GT25R Turbo – 471171-3

Garrett – GT2554R / GT25R Turbo – 471171-3

Garrett – GT2554R / GT25R Turbo – 471171-3

Original Garrett Turbocharger
Standard version according to Garrett GT turbocharger list
Power rating: 160 – 280 PS
Cubic capacity recommendation: 1,7 – 2,5L

Compressor: Inlet 42.8mm / Output 59.4mm / Trim 52 / 0.42ar
Turbine: Diameter 50,3mm / trim 72 / 0,56ar / External wastegate

– Plain bearing
– Oil-cooled bearing system
– Internal wastegate with wastegatealso available (PN 436313-6 / 0,67)
– Very efficient turbocharger

Here you buy the article according to the Garrett part number, as supplied by Garrett itself and offered on www.turbobygarrett.com . If you are looking for certain turbocharger variants without knowledge of the part numbers, you should contact us by telephone or e-mail.

Individual Garrett Turbos
This turbocharger offered here comes directly from the manufacturer. With Garrett turbochargers, however, there are various options to adapt flange designs and connections to the conditions in your vehicle. We are happy to put together Garrett turbochargers with various turbine housings and compressor housings for you. Please contact us by phone, email or contact form.

Contact Us for further Information by filling out this FORM
