Garrett – GT2854R / GT25R Turbo 0.64 A/R – 270PS – 471171-9

Garrett – GT2854R / GT25R Turbo 0.64 A/R – 270PS – 471171-9

Garrett – GT2854R / GT25R Turbo 0.64 A/R – 270PS – 471171-9

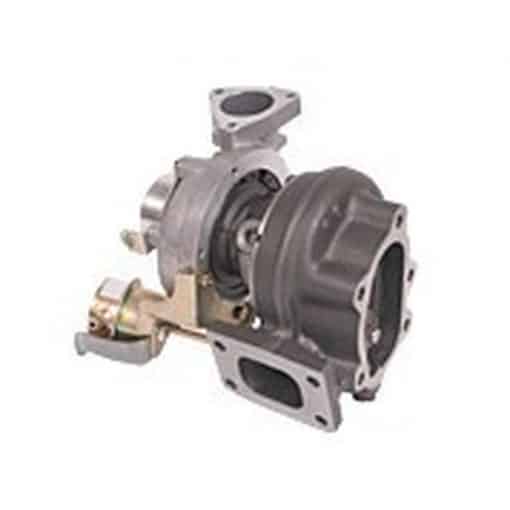

Original Garrett Turbocharger
Standard version according to Garrett GT-R turbocharger list

Power rating: 170 – 270 PS
Cubic capacity recommendation: 1.4 – 2.2L

Compressor: Inlet 42.1mm / Output 54.3mm / Trim 60 / 0.80ar
Turbine: Diameter 53.9mm / trim 62 / 0.64ar / internal wastegate

– Double ball bearing (471171-9)
– Double ceramic ball bearings (836026-1)
– Oil- and water-cooled bearing system
– Internal wastegate with wastegate
– High-nickel (“Ni-Resist”)
turbine housing- Inconel exhaust wheel
– similar to the GT2554R (836023-1 / 471171-3), but has a larger exhaust wheel, modified exhaust housing and other materials

Here you buy the article according to the Garrett part number, as supplied by Garrett itself and offered on www.turbobygarrett.com . If you are looking for certain turbocharger variants without knowing the part numbers, please contact us by telephone or e-mail.

Individual Garrett Turbos
This turbocharger offered here comes directly from the manufacturer. With Garrett turbochargers, however, there are various options to adapt flange designs and connections to the conditions in your vehicle. We are happy to put together Garrett turbochargers with various turbine housings and compressor housings for you. Please contact us by phone, email or contact form.
