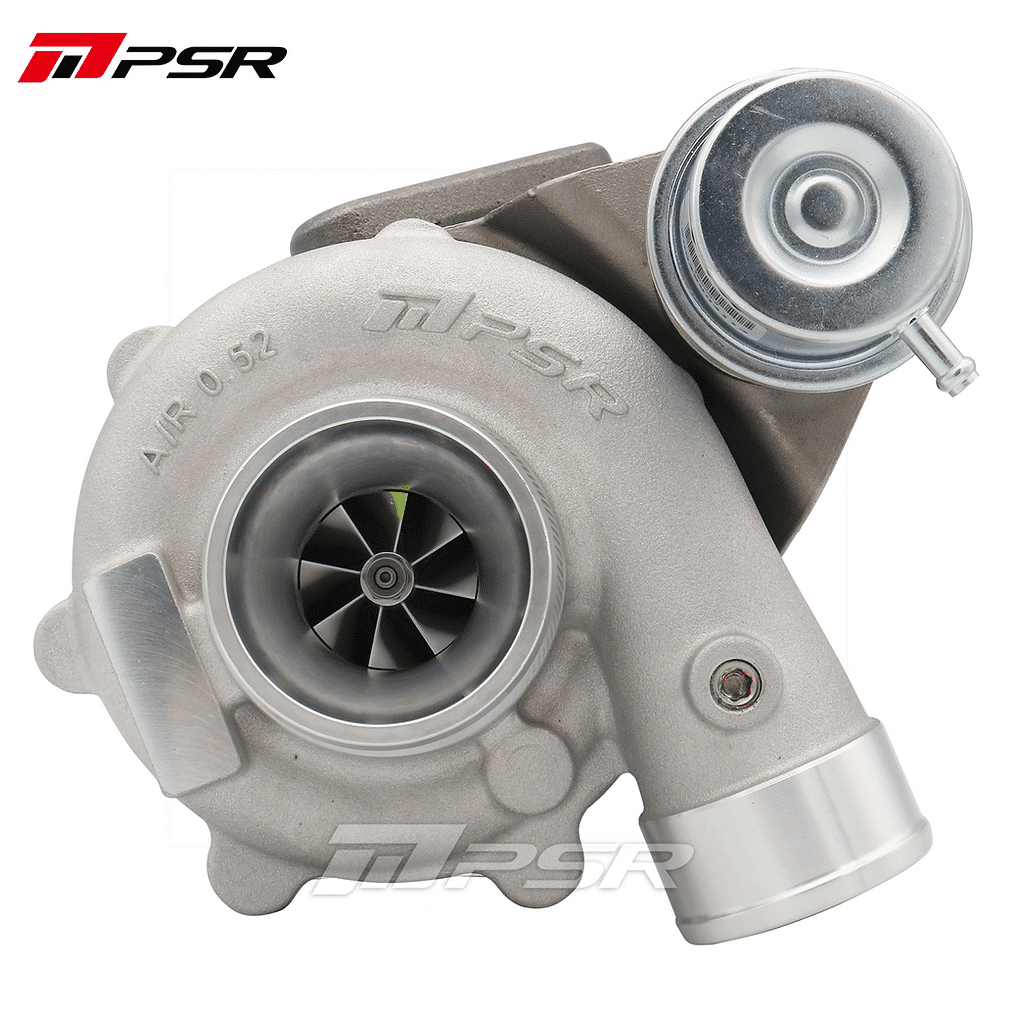

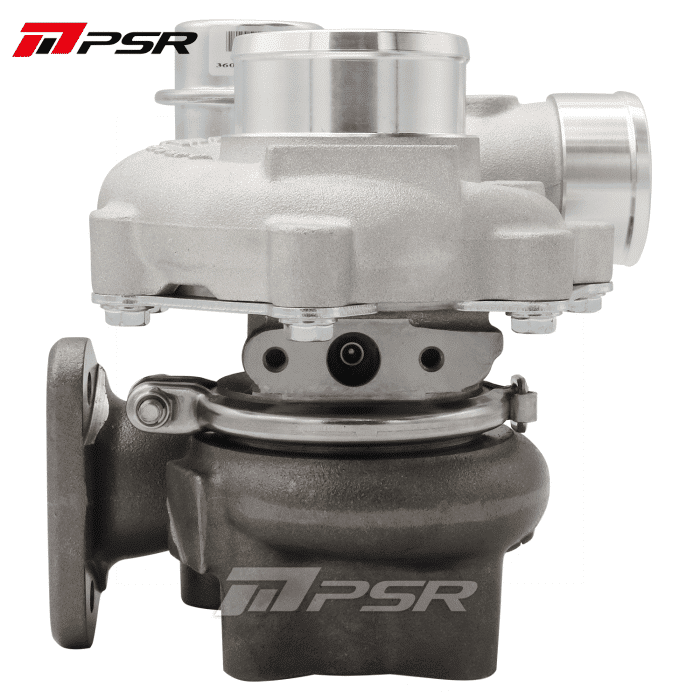

Pulsar – PTC Series – PSR3434C / 14-200

Name: Pulsar - PTC Series - PSR3434C / 14-200
Brand: Pulsar Turbo
SKU: PSR-3434C
Availability: BackOrder

£268.33 – £450.41

Pulsar – PTC Series – PSR3434C / 14-200 – Forged Fully-Machined Compressor Wheel with Extended Tip Aerodynamics Design

PRODUCTION TIME 1-2 WEEKS

Compressor Housing Options

Turbine Housing Options

Clear

SKU: PSR-3434C Categories: All Products, Pulsar, Turbo & Accessories, Turbos Tags: PULSAR, Turbo, turbo charger, turbo housing, turbo upgrade, upgrade Brand: Pulsar Turbo

Description
Additional information

Pulsar – PTC Series – PSR3434C / 14-200

PSR3434C / 14-200

Suitable for smaller capacity engines
Journal Bearing System, Oil-cooled Center Housing
Forged Fully-Machined Compressor Wheel with Extended Tip Aerodynamics Design
11 Blade 713c Turbine Wheel, 39*36mm
360 Degree Thrust Bearing
Internal Wastegate Turbine Housing, 0.45A/R
HP Rated at 200HP at the flywheel
Suitable Engine Size: 0.4-1.0L
Spec

Bearing Systems: Journal Bearing
Compressor Wheel: 34*46mm
Turbine Wheel: 39*34mm
Compressor Inlet: 60mm Hose
Compressor Outlet: 50mm Hose
Turbine Inlet: 3 Bolt
Turbine Outlet: 4 Bolt
Oil Feed(excl?): M10 x 1
Internal Wastegate Turbine Housing A/R: 0.45

Be sure to follow our Instagram page for new offers and the latest products @Partspluguk

Compressor Housing Options	Standard Housing, No Housing
Turbine Housing Options	0.45 a/r 3 Bolt inlet / 4 Bolt Outlet, No Turbine Housing
