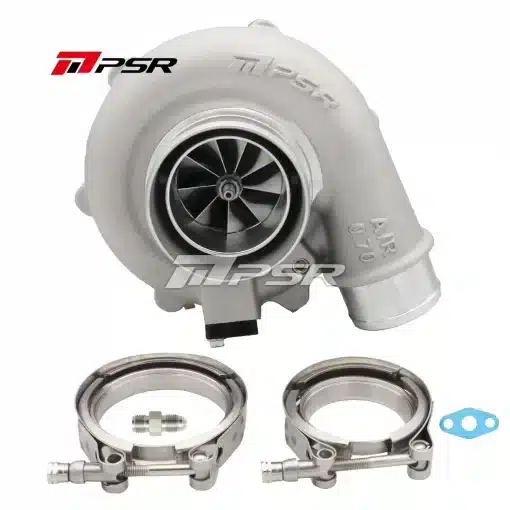

Pulsar – PTG Series – PSR4849G / 25-550
Pulsar – PTG Series – PSR4849G / 25-550
Please note, T51R housing option requires an extra 7 days handling time
Recommended displacement 1.6 to 3.0 litres with power outputs up to 550hp possible.
Dual Ceramic ball bearing system provides optimal turbo response &
better durability by reducing play in the shaft.
9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology
9 Blade G-Aero Inconel 713c Turbine Wheel
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
Internally wastegated units come with Billet Actuator(12-14 psi)
SPEC
Compressor Wheel: 48*60mm
Turbine Wheel: 54*49mm
Compressor Inlet: 3? Hose
Compressor Outlet: 2? Hose
Turbine Inlet: 2.5? V-Band
Turbine Outlet: 3? V-Band
Water Ports: -6AN
Oil Feed: -4AN to the Oil Restrictor
Oil Drain: Std T3 Oil Drain Flange

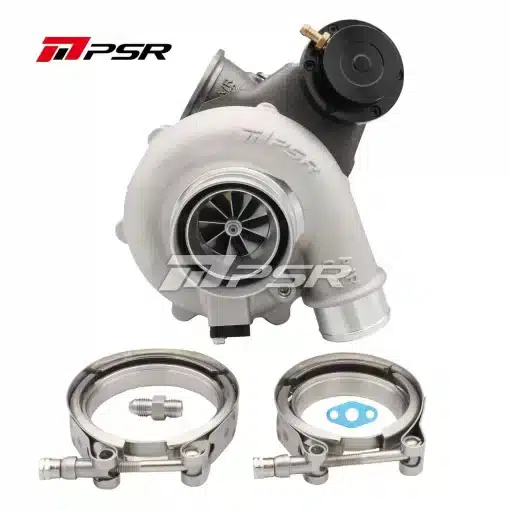

T3 option is supplied with a V band adaptor as shown in images.
Internally gated units come with billet actuator.
Contact Us for further Information by filling out this FORM
Be sure to follow our Instagram page for new offers and the latest products @Partspluguk
| Turbine Housing Options | .72 Dual V Band no W/G, .72 Dual V Band with IWG, .72 T25 with WG, .72 T3 no W/G, .72 T3 IWG (with adapter), .72 T25 no W/G (With adapter), .49 Dual V Band with IWG, .92 Dual V Band with IWG, .49 T3 IWG (with adapter), .92 T3 IWG (with adapter), .49 T25 IWG (with adapter), .92 T25 IWG (with adapter), No Turbine Housing |
|---|---|
| Compressor Housing Options | Standard Housing, T51R Mod Housing, No Housing |
