Pulsar – PTG Series – PSR5449G /25-660
Pulsar – PTG Series – PSR5449G /25-660
Please note, T51R housing option requires an extra 7 days handling time
Recommended displacement 1.6 to 3.0 litres with power outputs up to 660hp possible.
Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing play in the shaft.
9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology
9 Blade G-Aero Inconel 713c Turbine Wheel

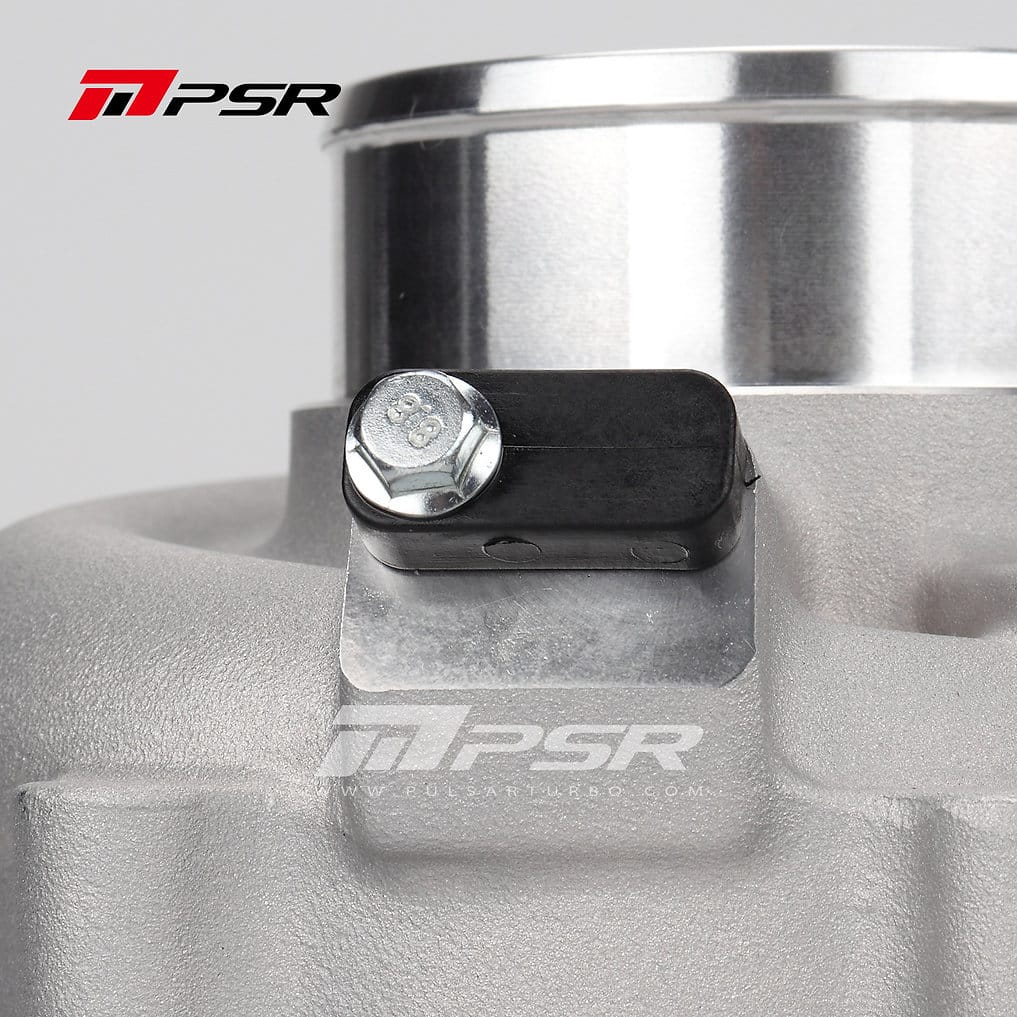

Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
0.72 T3 IWG option is supplied with a V band adapter as shown in the image.

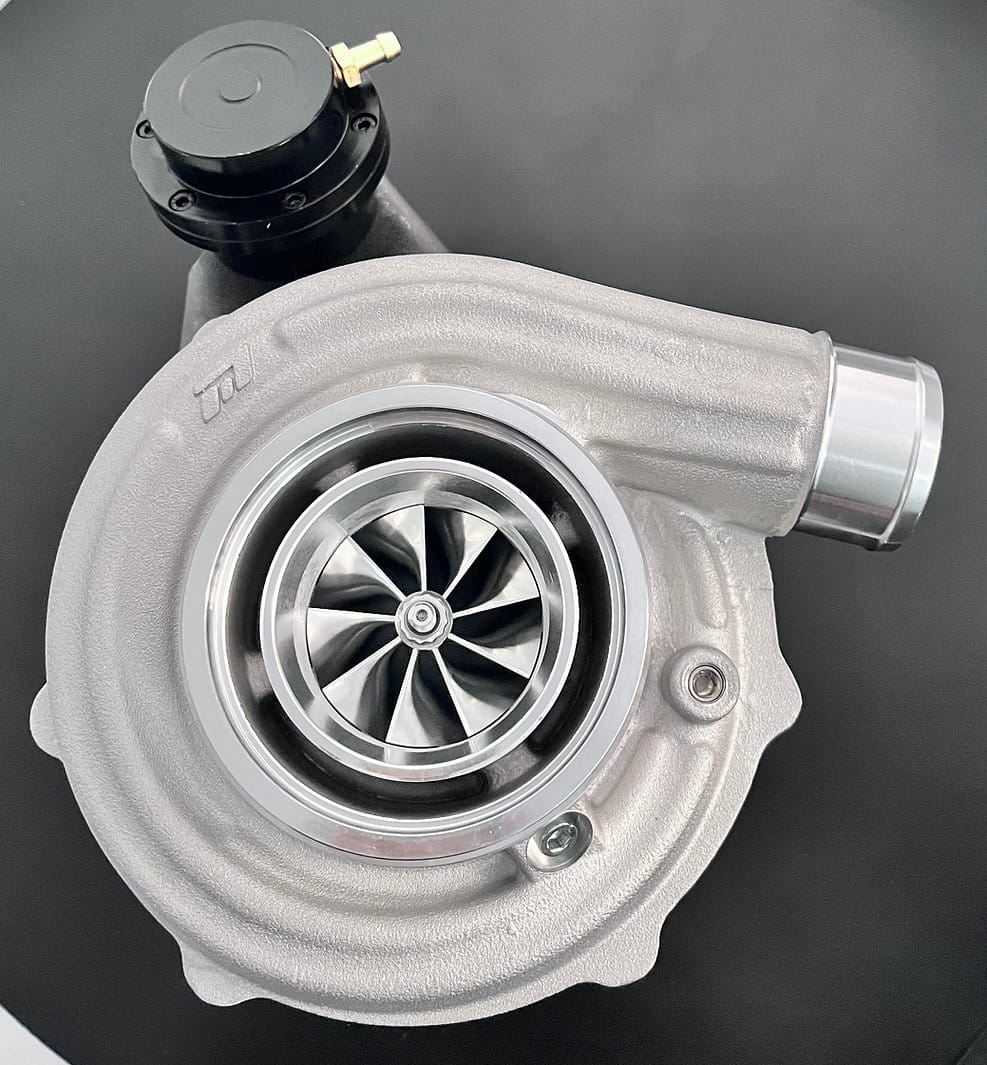

Internally wastegated units come with Billet Actuator(12-14 psi)
SPEC
Compressor Wheel: 54*67mm
Turbine Wheel: 54*49mm
Compressor Inlet: 3? Hose
Compressor Outlet: 2? Hose
Turbine Inlet: 2.5? V-Band
Turbine Outlet: 3? V-Band
Water Ports: -6AN
Oil Feed: -4AN to the Oil Restrictor
Oil Drain: Std T3 Oil Drain Flange
Internally gated units come with billet actuator.
T3 Option will be supplied as a V band housing and adapter.
It’s strongly recommended to run water cooling to aid reliability.
Contact Us for further Information by filling out this FORM
Be sure to follow our Instagram page for new offers and the latest products @Partspluguk
| Turbine Housing Options | .72 Dual V band no W/G, .72 Dual V band with IWG, .72 T25 with WG, .72 T25 No W/G (with adapter), .72 T3 no W/G, .72 T3 IWG (with adapter), .92 Dual V Band with IWG, .92 T25 IWG (with adapter), .92 T3 IWG (with adapter), .49 Dual V Band with IWG, .49 T25 IWG (with adapter), .49 T3 IWG (with adapter) |
|---|---|
| Compressor Housing Options | Standard Housing, T51R Mod Housing |
