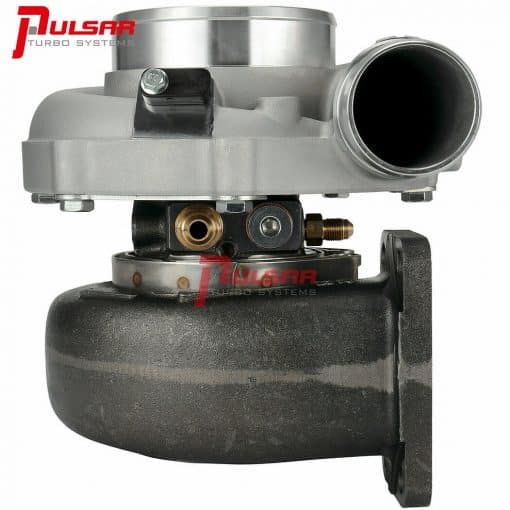

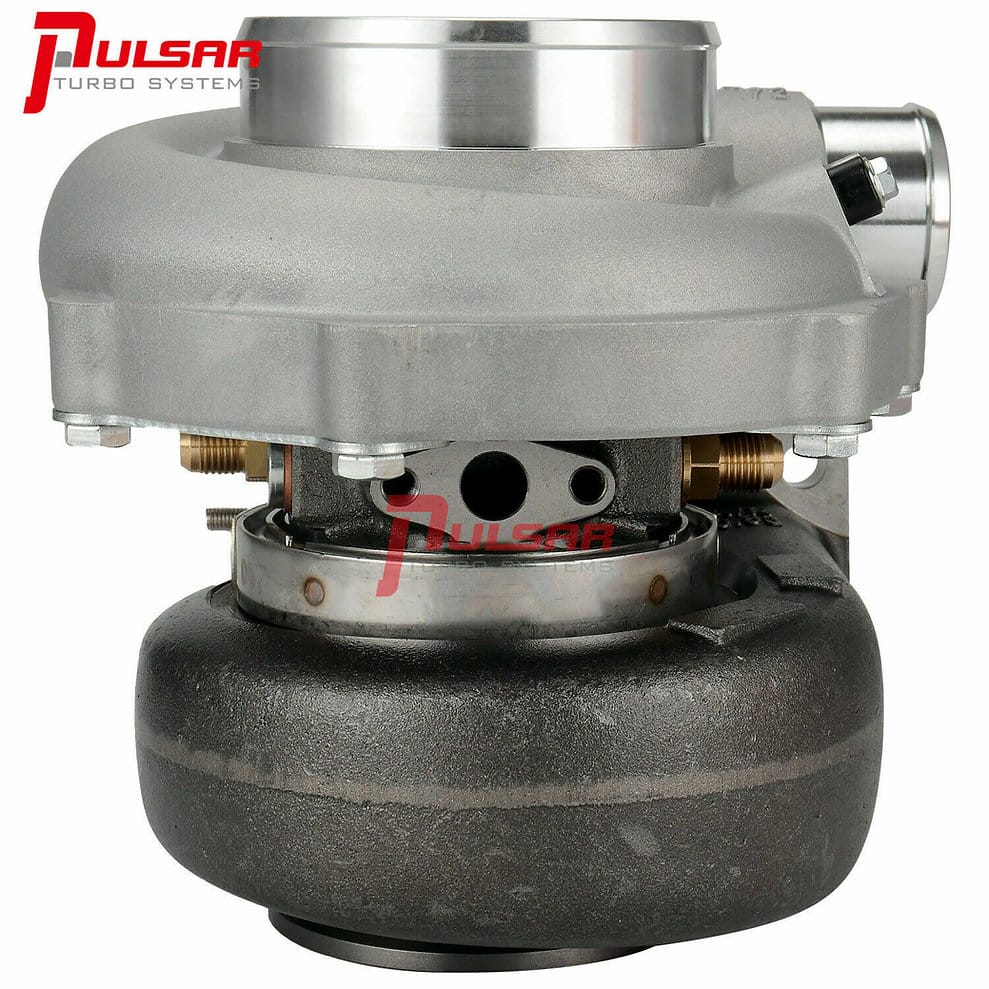

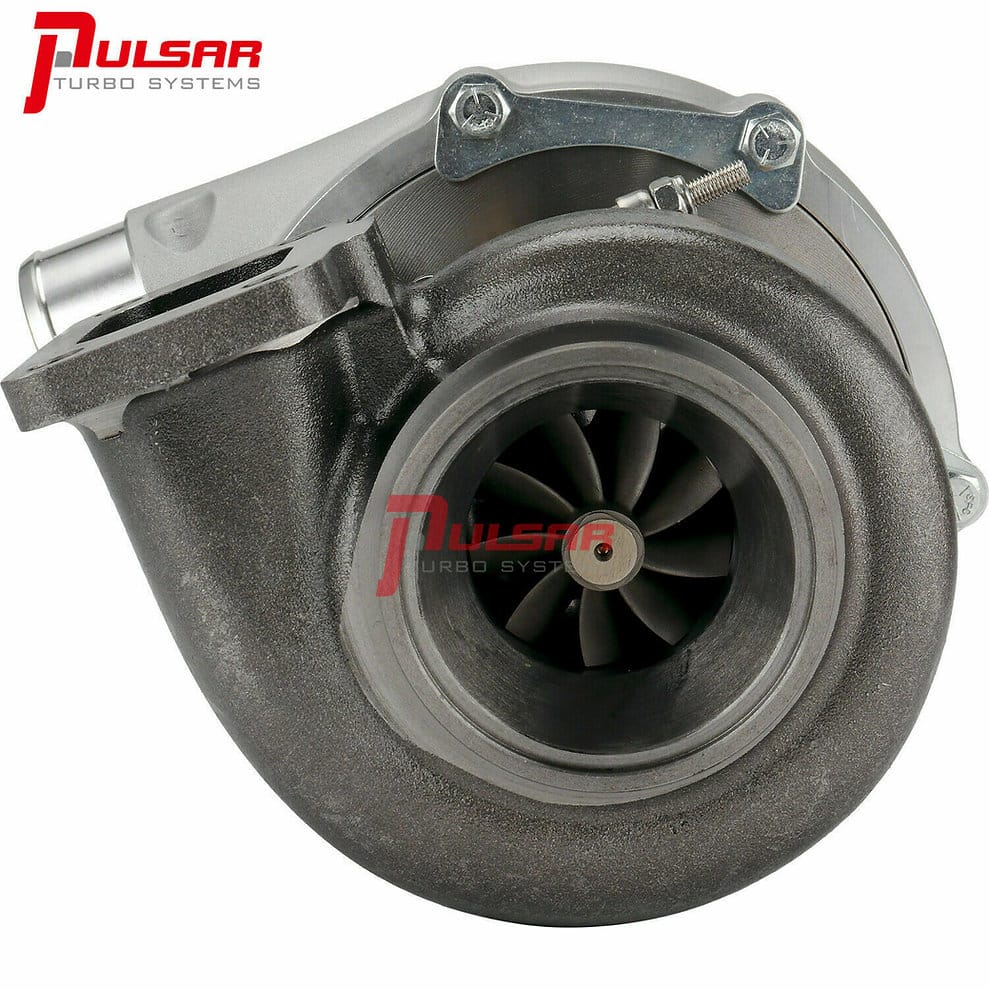

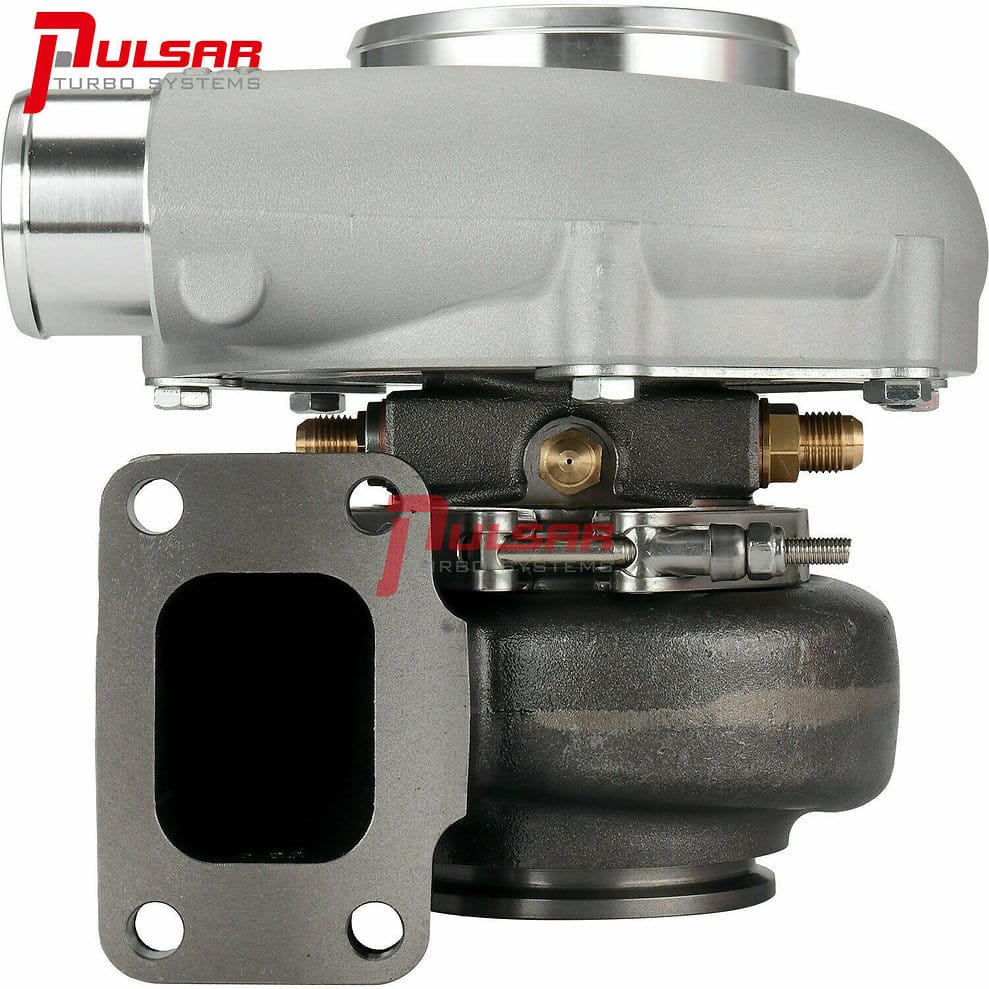

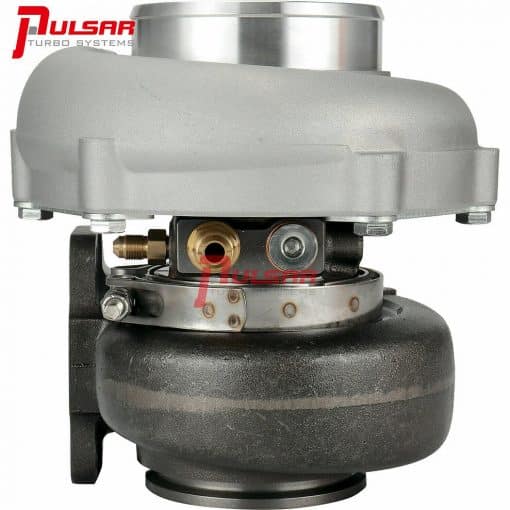

Pulsar – PTG Series – PSR5455G / 30-660
Pulsar – PTG Series – PSR5455G / 30-660
Please note, T51R housing option requires an extra 7 days handling time
Recommended displacement 2.0 to 3.5 litres with power outputs up to 660hp possible.
Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing play in the shaft.
9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology
9 Blade G-Aero Inconel 713c Turbine Wheel
Anti-Surge ported-shroud compressor inlet, cover with integrated speed sensor port
SPEC
Compressor Wheel: 54*67mm
Turbine Wheel: 60*55mm
Compressor Inlet: 3″
Compressor Outlet: 2? Hose
Turbine Inlet: T3 or T4. 1.01 V band is 2.5″ pipework
Turbine Outlet: 3? V-Band
Water Ports: 2-M14 X 1.5
Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
Oil Outlet: Std T3 Oil Drain Flange
It’s strongly recommended to run water cooling to aid reliability.
Contact Us for further Information by filling out this FORM
Be sure to follow our Instagram page for new offers and the latest products @Partspluguk
| Turbine Housing Options | T3 .83 V band, T4 .82 V band, 1.01 Dual V band, T3 0.72 v band, T25 0.72 v band with IWG, .72 Dual V band with IWG, .72 dual v band no WG, T3 1.01 V band, T25 1.01 V Band with adapter, T3 0.72 IWG, 0.83 Dual V band, 0.49 Dual V band with IWG, 0.92 Dual V band with IWG, .49 T25 IWG (with adapter), .49 T3 IWG (with adapter), .92 T25 IWG (with adapter), .92 T3 IWG (with adapter), 0.85 T4 Divided |
|---|---|
| Compressor Housing Options | Standard Housing 0.70 a/r 3" Inlet, T51R Mod Housing 3" Inlet |
