Pulsar – PTG Series – PSR6270G / 40-900

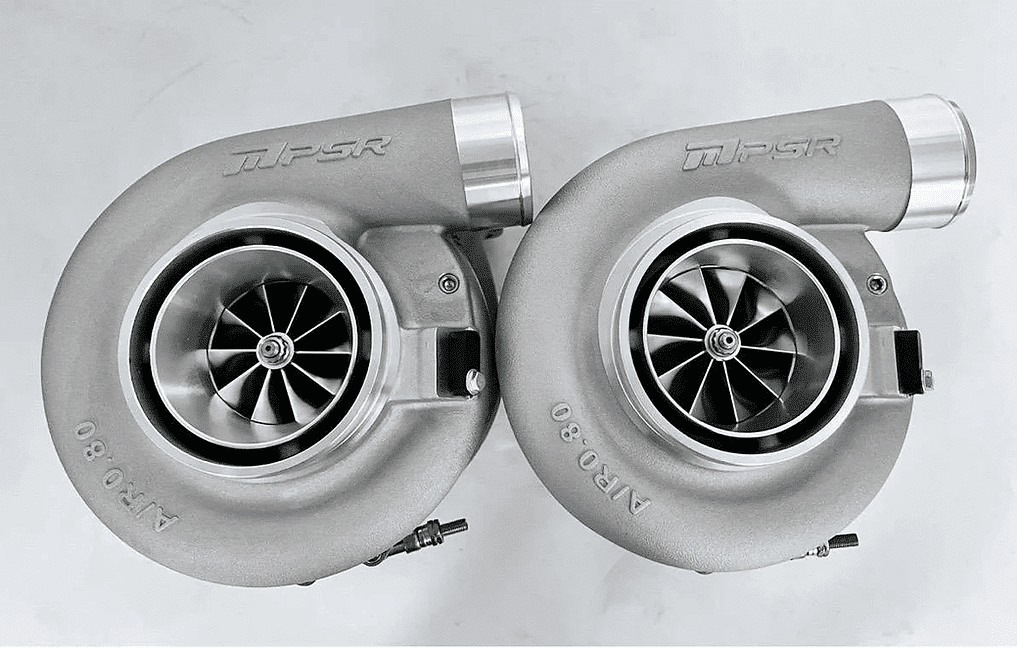

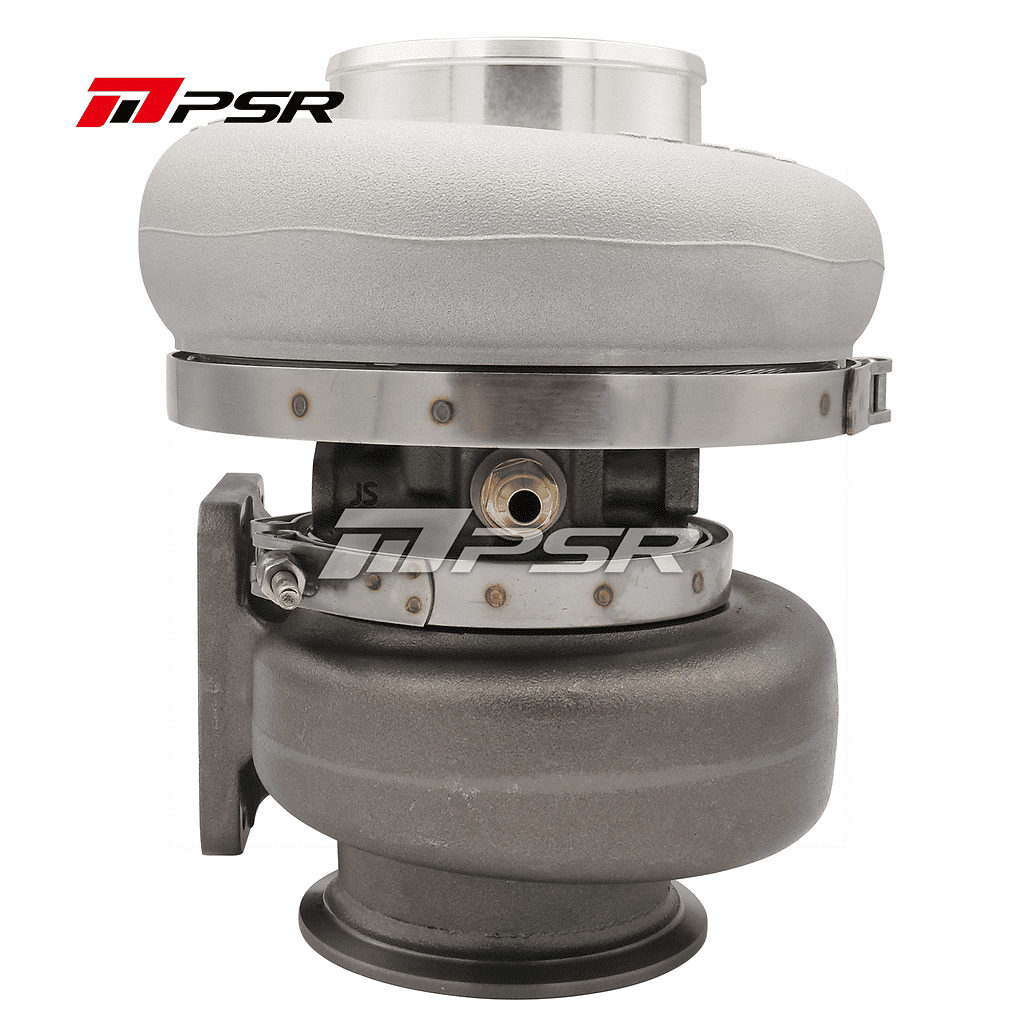

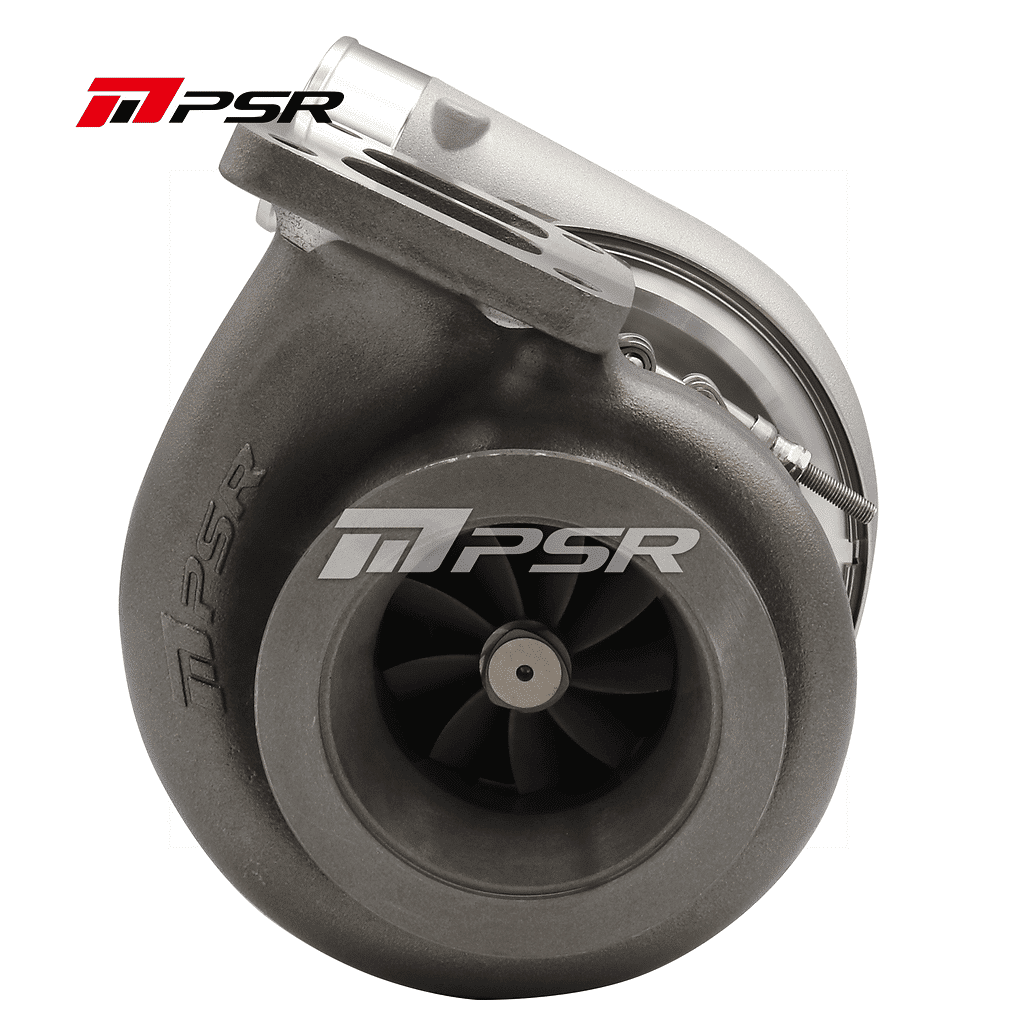

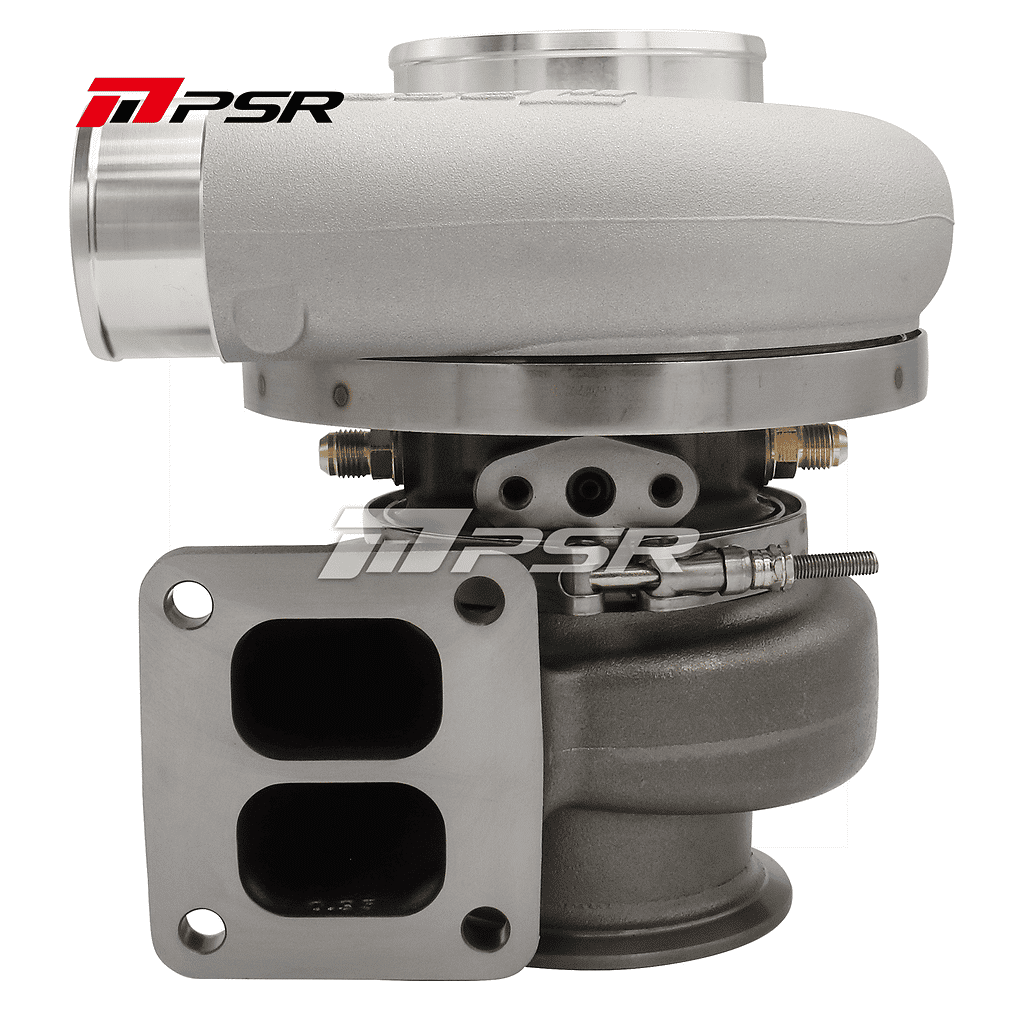

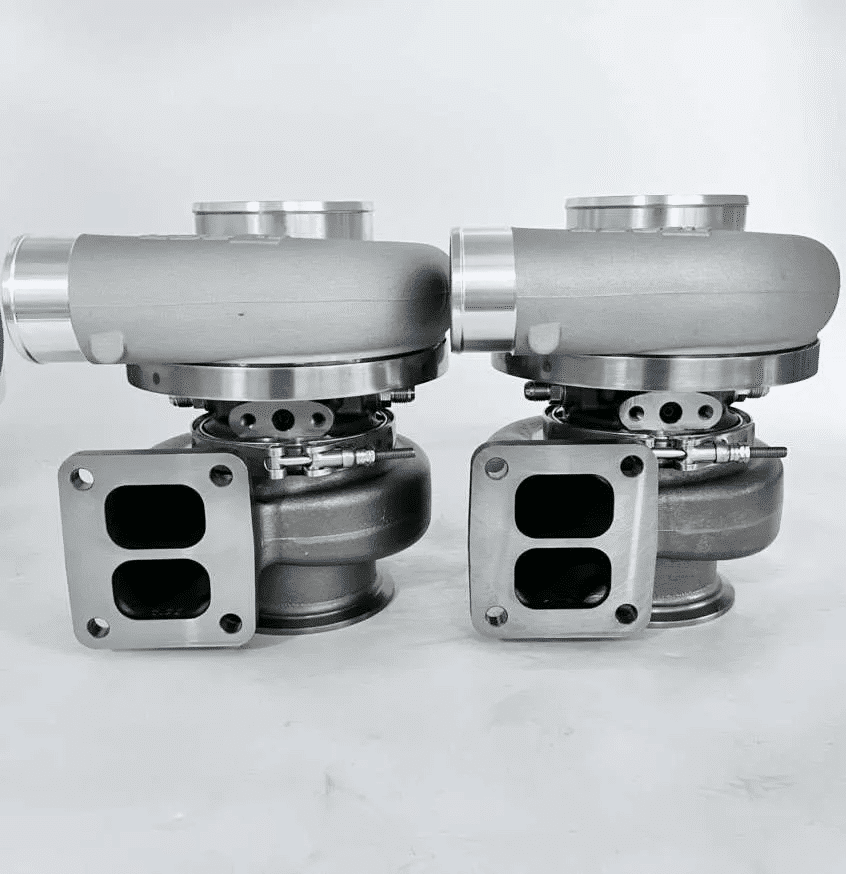

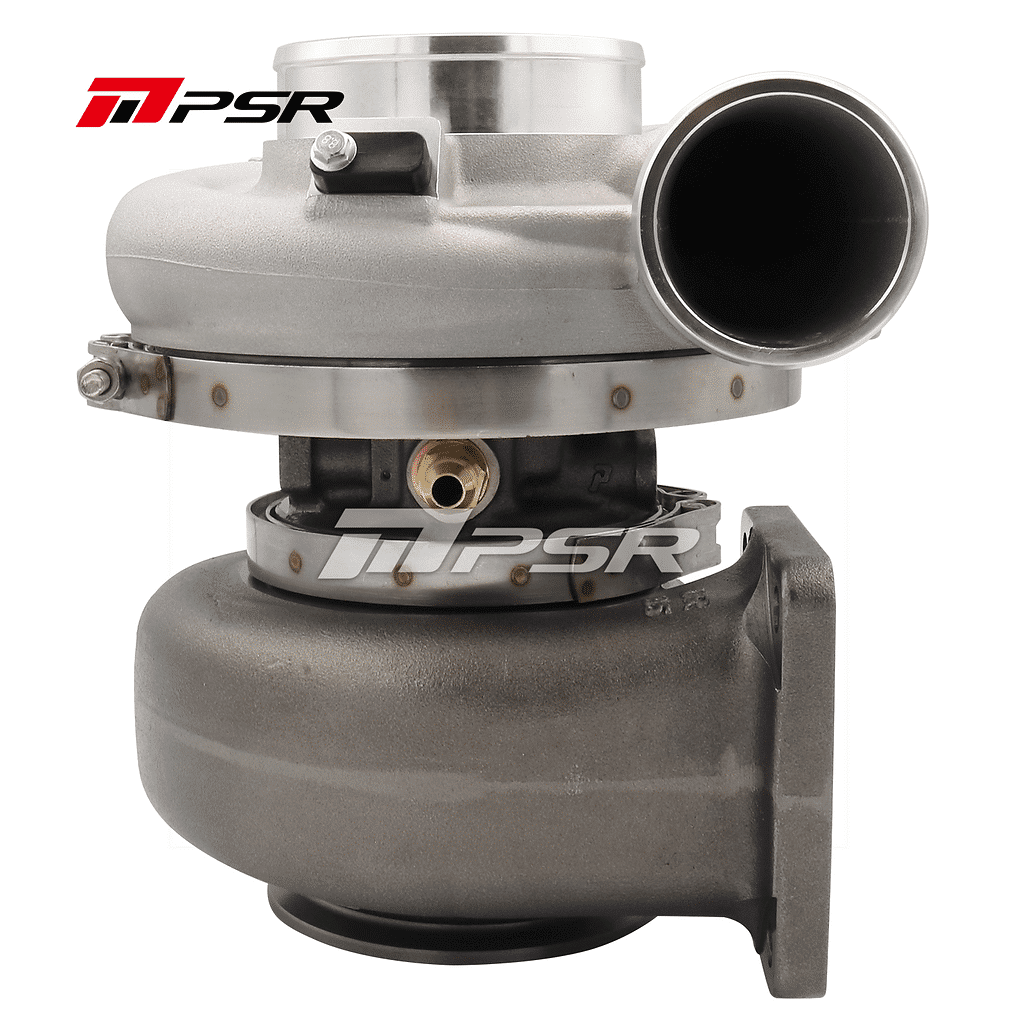

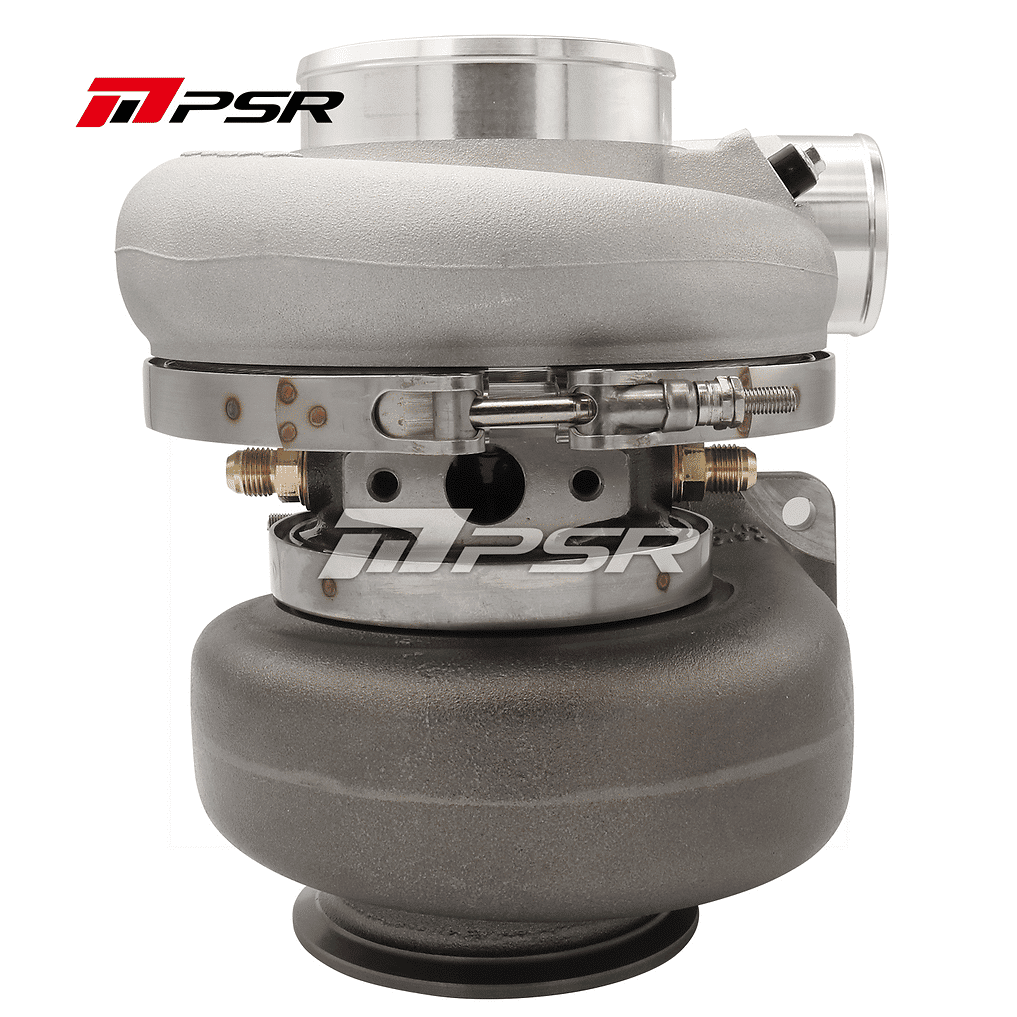

Pulsar – PTG Series – PSR6270G / 40-900 – Pulsar PSR6270G Mid frame Turbo. Dual ceramic ball bearing with steel cage provides optimal turbo response &better durability by reducing shaft motion 62mm inducer 10 Blade PTG-Aero billet compressor wheel with extended tapered tip technology 9 Blade PTG-Aero Inconel 713c turbine wheel. Anti-Surge ported-shroud compressor inlet, with integrated pressure and speed sensor ports. Water fittings included 2 Turbine housing options available HP rated at 900HP at the flywheel Suitable engine size: 2.0-6.0L
Spec
- Compressor Wheel: 62.7*88mm
- Turbine Wheel: 77*70mm
- Compressor Inlet: 4? Hose
- Compressor Outlet: 2.5? V-Band
- Turbine Inlet: T4 divided
- Turbine Outlet: 4? V-Band
- Water Ports: -6AN
- Oil Feed: Flange not supplied(Recommended size: -4AN Std T4 Flange )
- Oil Drain: -12AN(O-Ring sealed Flange Kit Incl?)
- 2 Options in Turbine Housing: T4(Divided) 0.95 A/R, 1.06 A/R
Contact Us for further Information by filling out this FORM
Be sure to follow our Instagram page for new offers and the latest products @Partspluguk
| Turbine Housing Options | T4 Divided 0.95 a/r, T4 Divided 1.06 a/r, No Turbine Housing, Dual V Band 1.06 a/r |
|---|---|
| Compressor Housing Options | Standard 0.80 Housing, T51R Mod 0.80 Housing |
