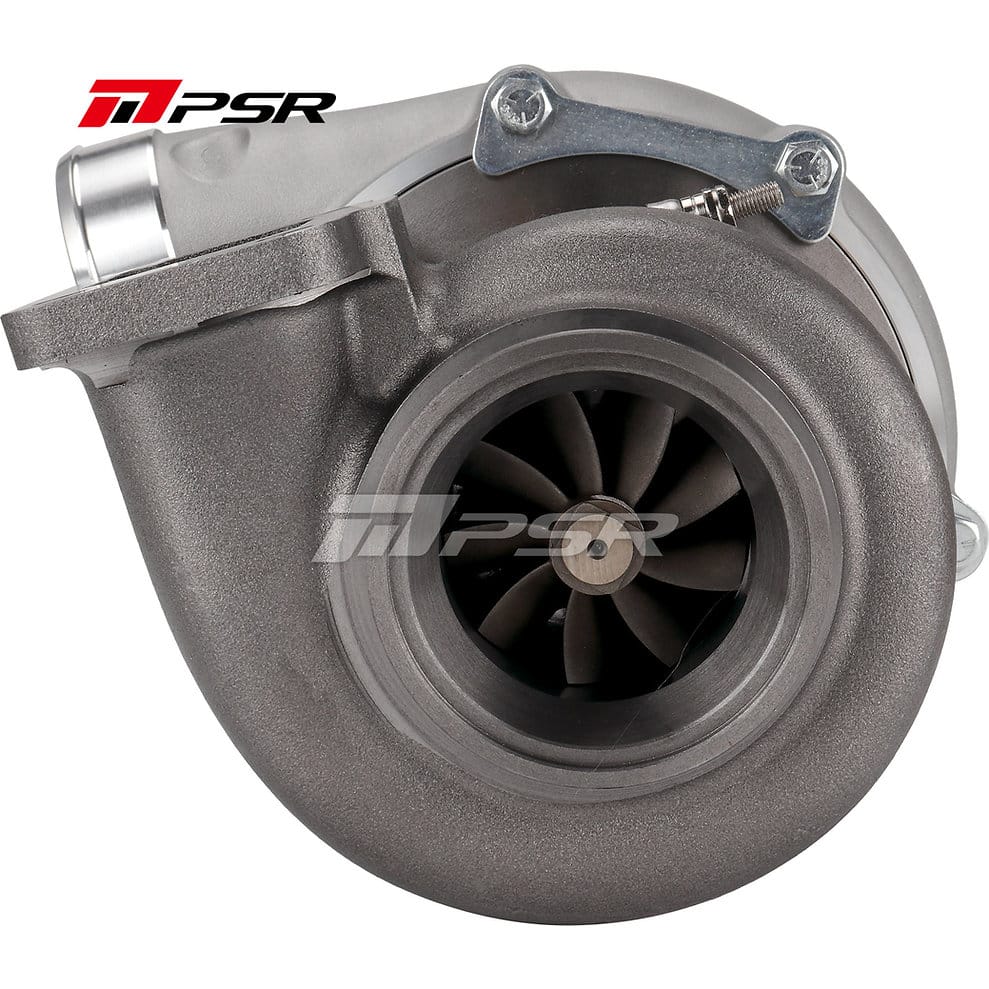

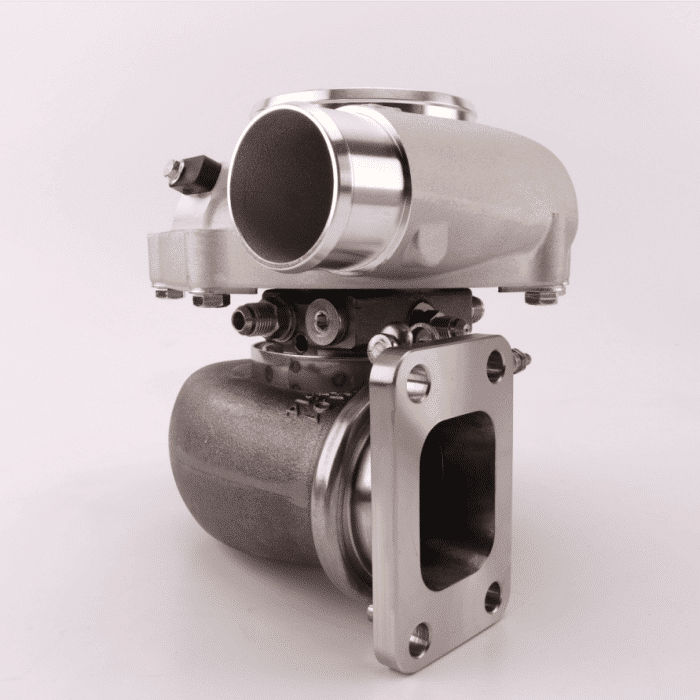

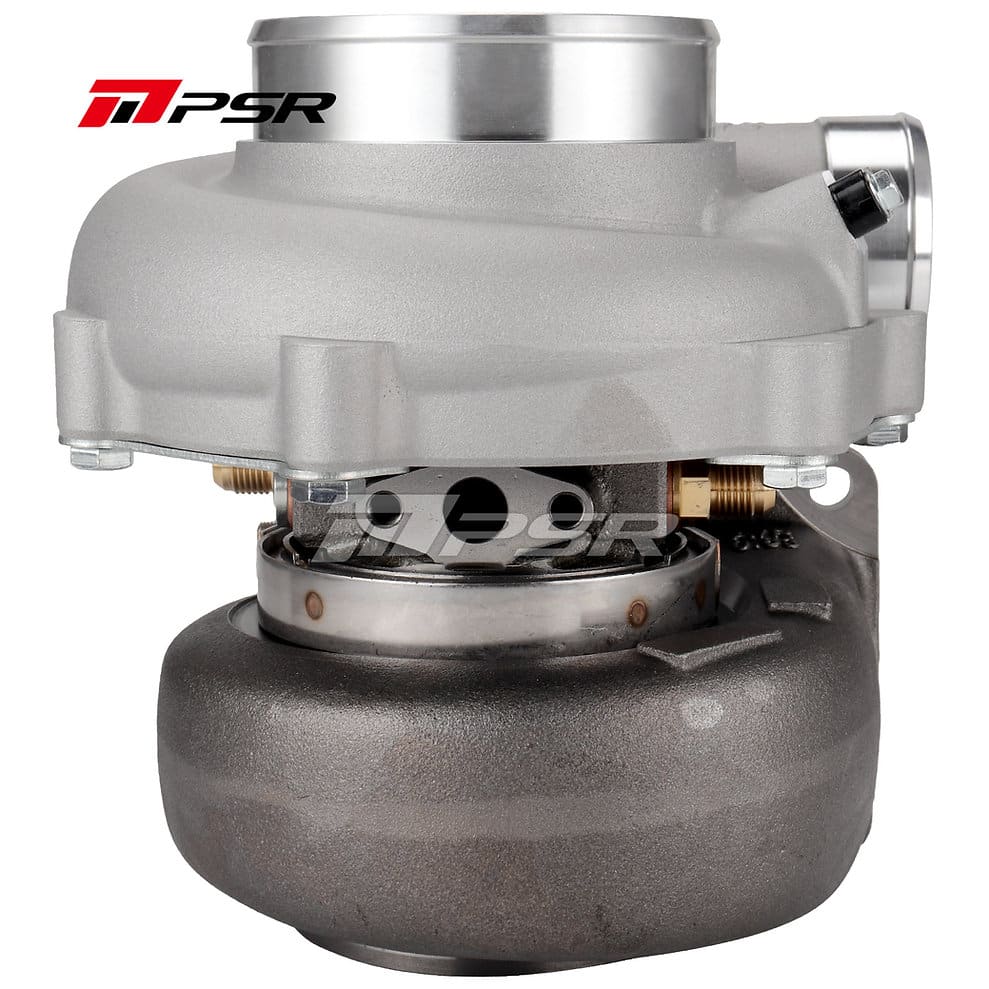

Pulsar – PTG Series – PSR6862G / 35-1050

Pulsar – PTG Series – PSR6862G / 35-1050

Pulsar – PTG Series – PSR6862G / 35-1050

Please note, T51R housing option requires an extra 7 days handling time
Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing play in the shaft.
9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology
9 Blade G-Aero Inconel 713c Turbine Wheel
Anti-Surge ported-shroud compressor inlet, cover with integrated speed sensor port
SPEC

Compressor Wheel: 68*84mm
Turbine Wheel: 68*62mm
Compressor Inlet: 4? Hose
Compressor Outlet: 2.5? V-Band
Turbine Inlet: T3/T4/V band
Turbine Outlet: 3? V-Band
Water Ports: 2-M14 x 1.5
Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed
Oil Drain: Std T3
3 options for turbine housing: T3 0.83A/R, T4 0.82A/R, Dual vband 1.01A/R*

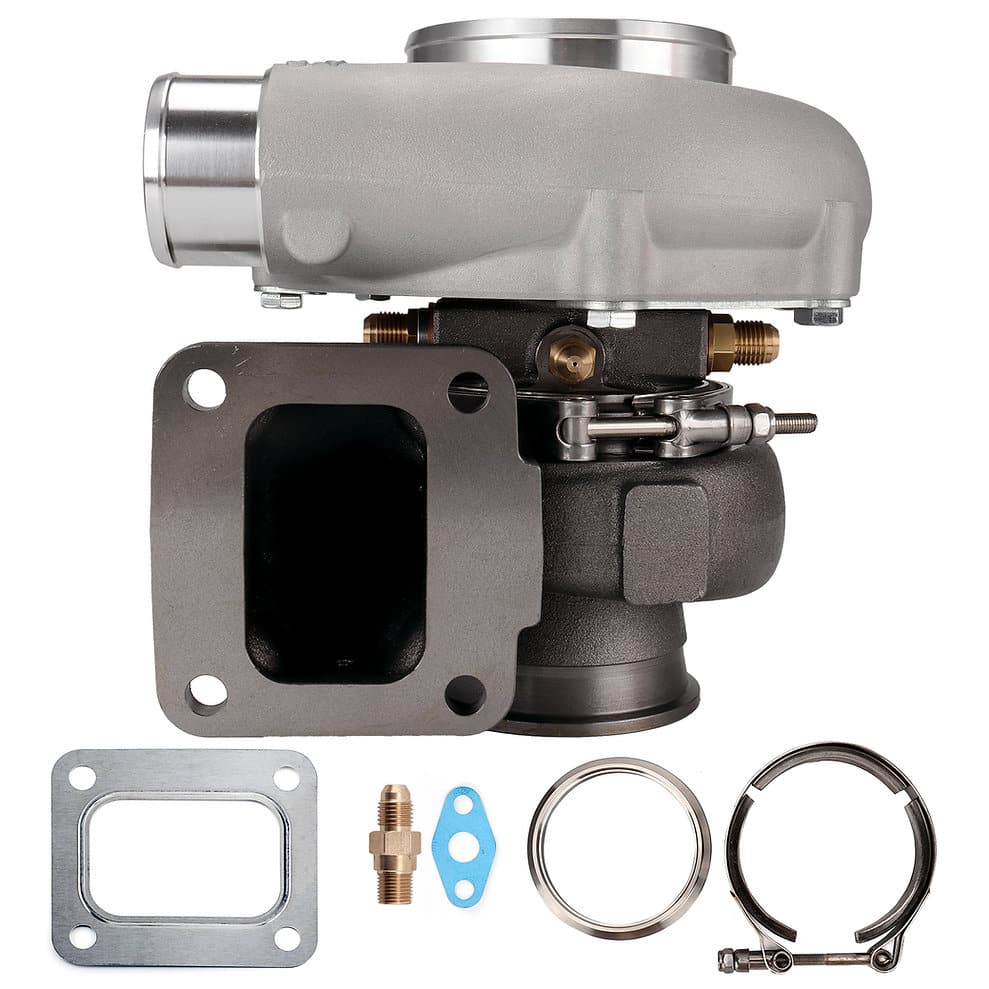

*Please note , T3 1.01 housing will be supplied with an adapter as per the image.
It’s strongly recommended to run water cooling to aid reliability (needed for warranty)
