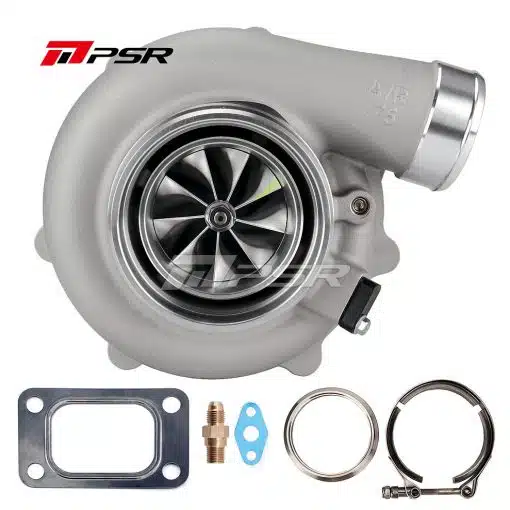

Pulsar – PTG Series – PSR6862G / 35-1050 (Reverse Rotation)
Pulsar – PTG Series – PSR6862G / 35-1050 (Reverse Rotation)
Reverse Rotation Pulsar PSR6862G
Please note, T51R housing option requires an extra 7 days handling time
Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing play in the shaft.
9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology
9 Blade G-Aero Inconel 713c Turbine Wheel
Anti-Surge ported-shroud compressor inlet, cover with integrated speed sensor port
SPEC
Compressor Wheel: 68*84mm
Turbine Wheel: 68*62mm
Compressor Inlet: 4? Hose
Compressor Outlet: 2.5? V-Band
Turbine Inlet: Vband/Vband with T3 adapter
Turbine Outlet: 3? V-Band
Water Ports: 2-M14 x 1.5
Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed
Oil Drain: Std T3
Turbine housing Dual vband 1.01A/R
It’s strongly recommended to run water cooling to aid reliability (needed for warranty)
Contact Us for further Information by filling out this FORM
Be sure to follow our Instagram page for new offers and the latest products @Partspluguk
| Turbine Housing Options | 1.01 Dual V Band, T3 Inlet / V Band Outlet / 1.01 a/r, T4 Inlet / V Band Outlet 1.01 a/r |
|---|---|
| Compressor Housing Options | Standard Housing, T51R Mod Housing |
