How to install the Platinum Racing Nissan Rb30 Wet and Dry Sump 4wd Integrated Main Cap Engine Cradle.


The installation of this piece of hardware is a little tricky especially the first time you do it, your block will need tunnel boring by a professional, the steps we show you are absolutely essential, we are easily contactable if you have questions or comments and always appreciate feedback. Please understand that ALL Nissan cast iron blocks differ, we accommodate differences in machining, bolt position and irregularities in casting as much as possible, all that aside please be patient and expect to have to modify little bits and pieces along the way that we may not have covered in this manual.

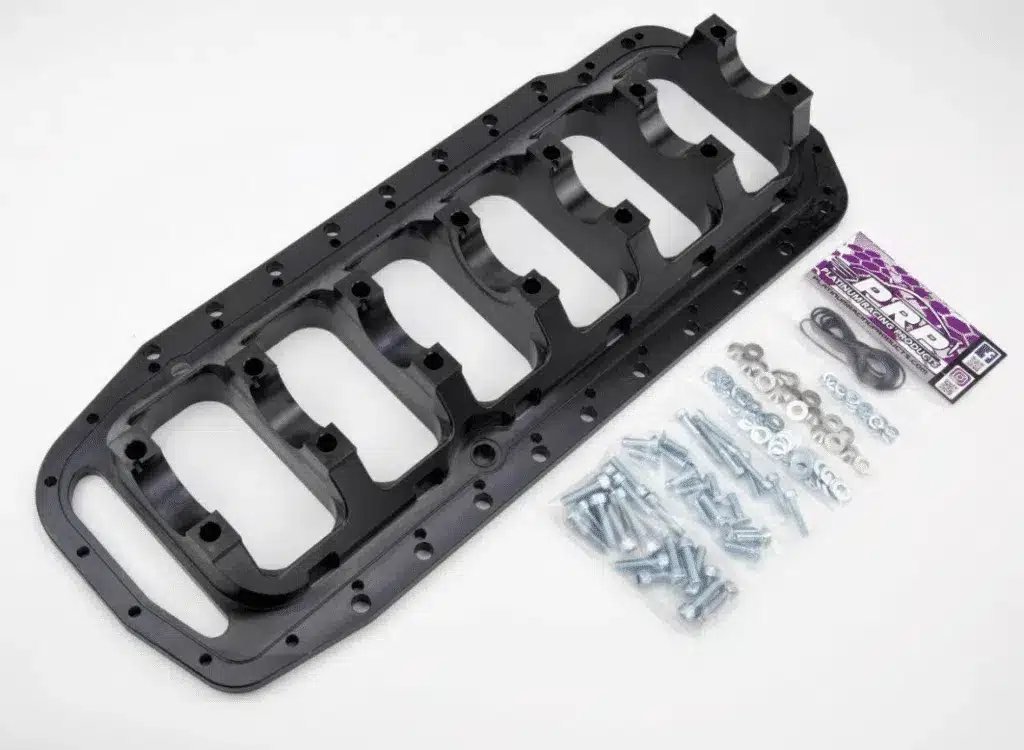

all in 1 Latest revision 4, Ductile Cast CNC machined Integrated Main cap Brace that now utilises everything we have learnt and all evolution of our standard OEM overlay brace but this time we have included billet main caps and incorporated the block brace itself in a one-piece unit! As you know, block twist is the major factor contributing to blocks cracking where our standard original brace has helped immensely! You have heard or tried billet main caps, which do not offer block twist protection at all, they are also hard to pin down and stop them floating (near impossible)

The usual billet main cap is also usually too hard, the harder the better you would think! WRONG, hard singular main caps do not absorb or disperse energy and shock, it bounces it straight back into the crank and con rods, and unless you are running alloy rods, your bearing and rotating assemblies life is actually diminished, a connected main cap brace offers a ton of positives, including energy and shock disbursement, much better twist protection, and no chance of main cap movement, even less chance of cracking the main cap.

So with all the real data and testing, we have done over the last 10 years with our braces we figured it was time to release our latest brace creation in iron, available for both the RB26 and RB30 configurations.

*This brace is for the serious racers here, it’s aimed at 1000hp plus applications, although there is no issue running this big block of precision manufactured equipment in your everyday cruiser.

*This brace has excellent thermal expansion properties closely matched to your OEM Cast Iron block, with less machine work than our typical standard overlay braces. * 12mm or 1/2 inch bolt upgrade is required, Tunnel Bore is also required (as all blocks with aftermarket bolts are required)

*Brace comes with bolt kit in any of the 4WD/ 2WD configurations for the RB25/ 26 type 4WD, and the RB30/28/25 RWD blocks and you can convert them all to 4WD or 2WD with the right chosen bolt kit supplied.

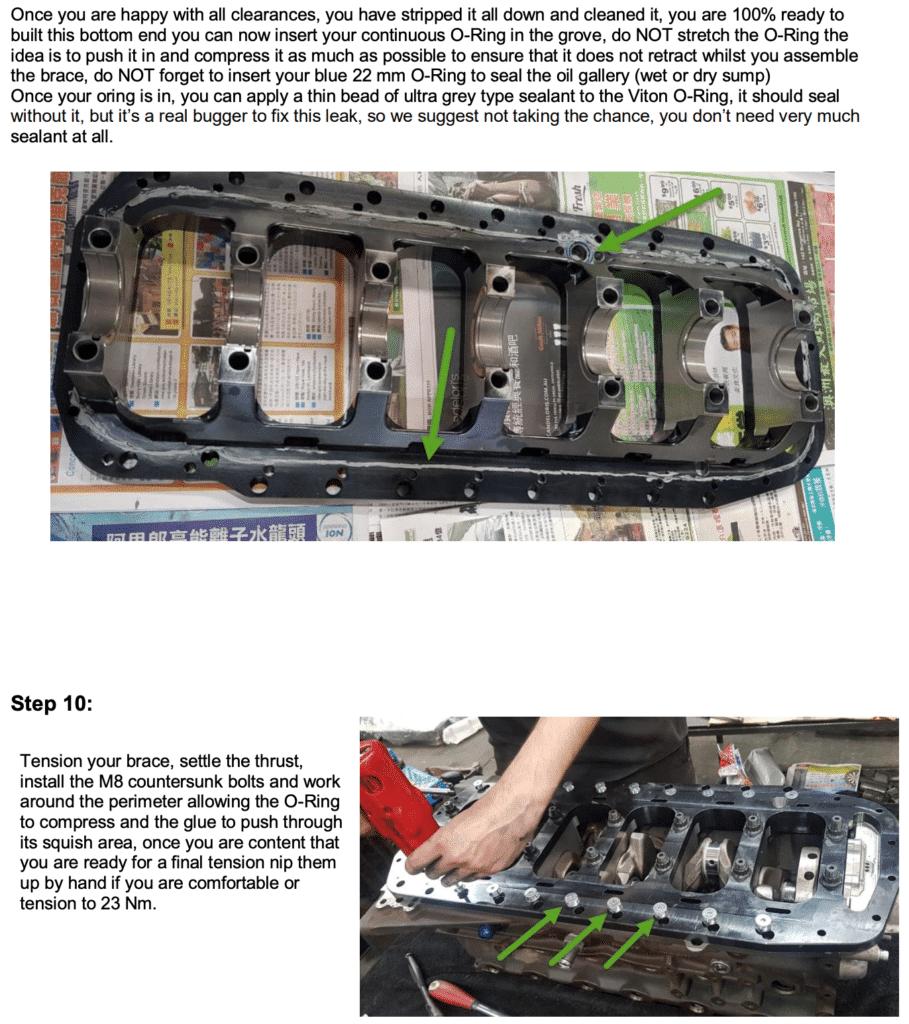

*Block face is O-ring aided for ease of sealing. The brace is blackened (surface treated) for corrosion tolerance.

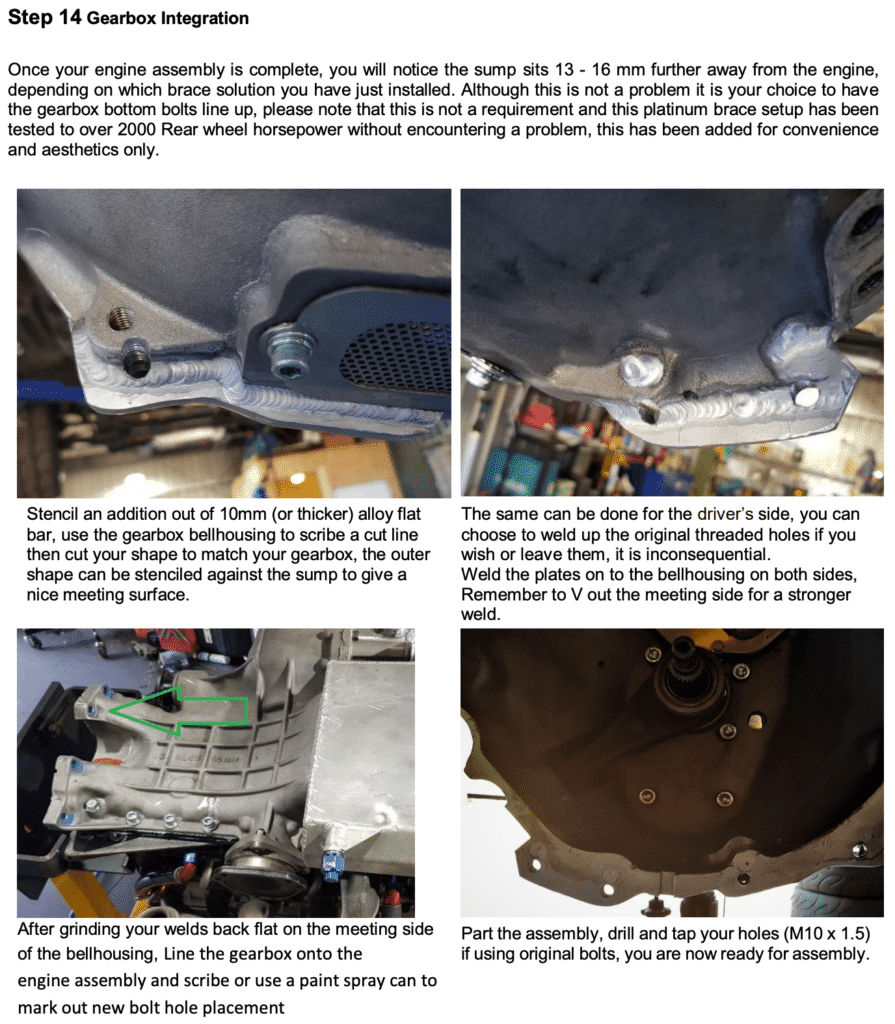

Once you fit your front propeller or transfer case shaft, you will notice that the clutch slave cylinder bleeder nipple comes close or hits the prop shaft, cut the tip of the nipple off to allow clearance, you can grind some flats in it to get a small spanner on to it for bleeding
